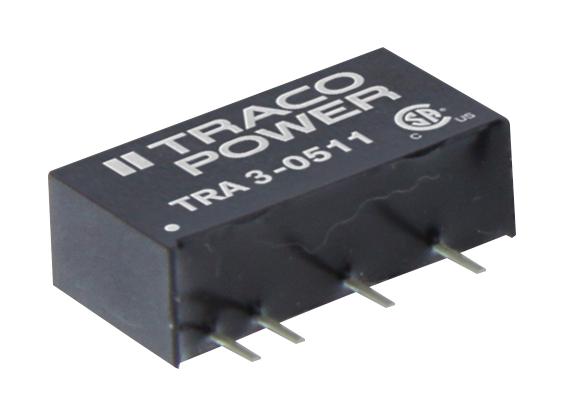

TRACO POWER TRA30512 DC/DC Converter
The TRA 3 series are compact, high-efficiency 3W DC/DC converters with isolation and semi-regulated outputs, ideal for powering sensitive circuits. These converters operate from 5V, 12V, or 24V inputs, with output voltages of 5V, 9V, 12V, or 15V, and feature up to 89% efficiency, 1000 VDC isolation, and a broad operating temperature range from -40°C to +95°C. They are suitable for industrial, automation, and power supply applications, ensuring reliable performance with a 3-year warranty and compliance to IEC 60950-1 safety standards.
TRACO POWER TRA30512 DC/DC Converter Specifications:
- Input voltage: 5V, 12V, 24V
- Output voltages: 5V, 9V, 12V, 15V
- Output current: 200 mA to 600 mA
- Efficiency: up to 89%
- Isolation voltage: 1000 VDC
- Operating temperature: -40°C to +95°C
- Dimensions: Case length 19.5 mm, width 10.3 mm, height 12.2 mm
- Weight: 2.2 g
- Soldering temperature: max 260°C
- Ripple and noise: 100 mVp-p max
- MTBF: >2,000,000 hours
- Certifications: IEC 60950-1, UL, RoHS
- Switching frequency: 60 kHz
- Input filter: Internal capacitor
- Isolation capacitance: 60 pF typ.
Buy the TracoPower TRA 3 Series – Reliable 3W DC/DC Converters for Industrial Applications
Order the TracoPower TRA 3 Series 3W DC/DC converters today to ensure your power supply needs are met with high efficiency, reliable isolation, and a broad temperature range. Perfect for industrial, automation, and sensitive electronic applications, these converters feature a compact design, up to 89% efficiency, and a 3-year warranty. Secure your supply chain now by purchasing online and benefit from fast delivery and certification compliance, making them an essential component for professional power management solutions.
Buy TracoPower TRA 3 Series 3W DC/DC converters now and experience unmatched reliability, high efficiency, and robust isolation for industrial and automation projects.
Frequently Asked Questions
Where can I buy TRACO POWER TRA30512?
You can click on the BUY or RFQ button to purchase TRA30512 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TRA30512?
You can download the TRA30512 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TRA30512?
TRACO POWER
