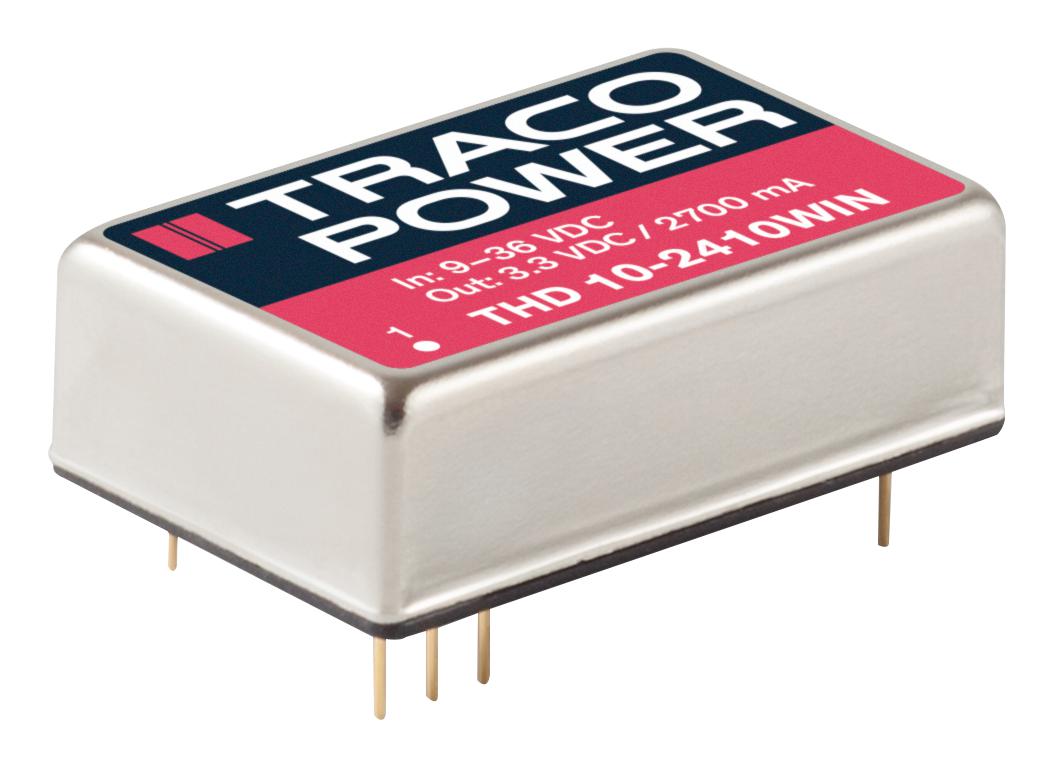

TRACO POWER THD102413WIN DC/DC Converter
The THD 10-2413WIN from Tracopower is a 10W DC to DC converter in a 24-pin DIP package, designed for cost-effective and high-performance applications. It features an internal EMI filter compliant with EN55022 Class A, eliminating the need for external components. The converter has a wide input voltage range of 9V to 36V (nominal 24V), with a fixed output voltage of 15V DC and a maximum output current of 666mA. It offers high efficiency (~87%), high input-output isolation of 1500VDC, with an isolation capacitance of 1000pF and resistance greater than 1000 MΩ. The device requires no minimum load, includes overload protection, and operates over temperatures from -40°C to +85°C. It complies with UL/cUL 60950-1 and IEC/EN 60950-1 safety standards, making it suitable for industrial, communication, and networking applications.
TRACO POWER THD102413WIN DC/DC Converter Specifications:
- Input Voltage Range: 9V to 36V
- Output Voltage: 15 VDC
- Output Current Max.: 666 mA
- Efficiency: 87%
- Isolation Voltage: 1500 VDC
- Isolation Capacitance: 1000 pF
- Isolation Resistance: >1000 MΩ
- Operating Temperature: -40°C to +85°C
- Case: 24-pin DIP package
- Overload Protection: Yes
- No Minimum Load required
- Surge Voltage: 50V max. (24V models), 100V max. (48V models)
- EMI Filter: Meets EN 55022 class A
- Safety Standards: UL/cUL 60950-1, IEC/EN 60950-1
- Humidity: Up to 95% non-condensing
- Weight: 173g
- Soldering Temperature: Max 260°C
Buy the Tracopower THD102413WIN – Reliable DC/DC Converter for Industrial Applications
Enhance your power management with the Tracopower THD102413WIN, a 10-watt DC/DC converter offering 15V output and wide input compatibility. Designed for industrial and communication applications, it features high efficiency of 87%, high input-output isolation, and full safety certifications including UL and IEC standards. Its compact DIP-24 package ensures easy integration into cost-sensitive designs, while the advanced EMI filtering minimizes external components. With no minimum load requirement and overload protection, it guarantees reliable operation across a wide temperature range, making it the perfect choice for your power supply needs.
Buy Tracopower THD102413WIN now and experience unmatched reliability with high efficiency, safety compliance, and robust industrial performance.
Frequently Asked Questions
Where can I buy TRACO POWER THD102413WIN?
You can click on the BUY or RFQ button to purchase THD102413WIN from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THD102413WIN?
You can download the THD102413WIN datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THD102413WIN?
TRACO POWER
