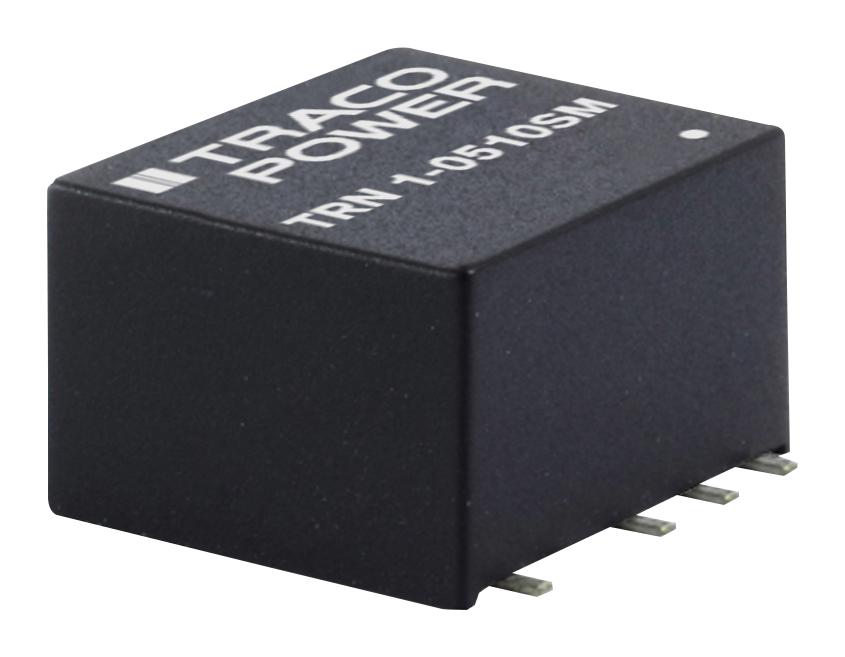

TRACO POWER TRN14822SM DC/DC Converter
The TRN 1SM Series offers compact 1 Watt DC/DC converters in a small SMD package measuring 11.9 x 11.3 x 8.0 mm, ideal for space-constrained applications. These fully regulated units feature input voltages from 4.5-13.2, 9-18, 18-36, and 36-75 VDC, with 1600 VDC isolation and operate reliably from -40°C to +90°C without derating. They include short circuit protection, meet IEC/EN 62368-1 standards, and are suitable for various industrial environments requiring high performance and safety compliance.
TRACO POWER TRN14822SM DC/DC Converter Specifications:
- Size: 11.9 x 11.3 x 8.0 mm
- Input Voltage Range: 4.5-13.2, 9-18, 18-36, 36-75 VDC
- Output Power: 1 Watt
- Isolation Voltage: 1600 VDC
- Operating Temperature: -40°C to +90°C
- Output Voltage Options: 3.3 V, 5 V, 12 V, 15 V, 24 V
- Efficiency: up to 83%
- Short Circuit Protection: Yes
- Operating Frequency: 100 kHz
- Casing Material: Non-conductive black plastic
- Potting Material: Silicone (UL 94V-0)
- MTBF: 7,400,000 hours
- Conformal Coating: Yes
- Humidity: 5-95% RH
- Safety Standards: IEC/EN 62368-1, UL 60950-1
Buy the Traco Power TRN14822SM – Reliable DC/DC Converter for Industrial Applications
Upgrade your project with the Traco Power TRN14822SM, a compact 1-watt DC/DC converter providing regulated outputs, wide input voltage range, and high isolation. Designed for reliable operation from -40°C to +90°C, it features short circuit protection and efficient performance. Its small size makes it ideal for space-constrained applications in industrial automation, communications, and control systems. Order online today to benefit from high quality, safety standards, and fast delivery for your demanding projects.
Buy Traco Power TRN14822SM now and experience unmatched reliability and performance in space-limited industrial environments.
Frequently Asked Questions
Where can I buy TRACO POWER TRN14822SM?
You can click on the BUY or RFQ button to purchase TRN14822SM from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TRN14822SM?
You can download the TRN14822SM datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TRN14822SM?
TRACO POWER
