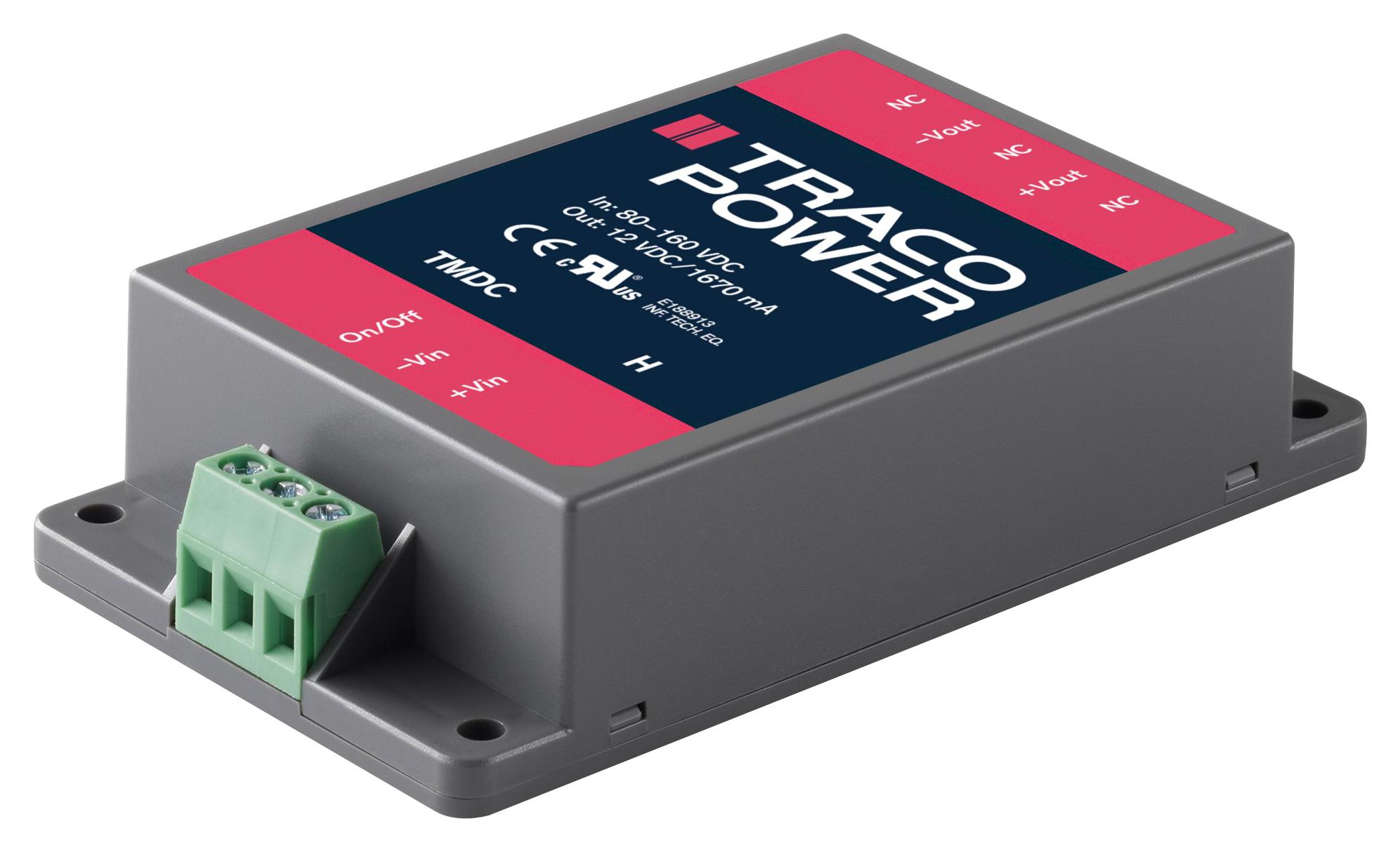

TRACO POWER TMDC207212H industrial DC/DC converter
The TMDC 20H Series by Traco Power offers fully encapsulated 20-watt industrial DC/DC converters designed for harsh environments. These modules feature a high 2:1 input voltage range of 80-160 VDC, reinforced 3000 VAC isolation, and fully regulated outputs suitable for industrial and 110 VDC battery applications. Operating efficiently from -40°C to +85°C without derating, they incorporate internal filters complying with EN 55032 and EN 55035 standards, ensuring low emissions and high immunity. Certified under UL 62368-1 with a 3-year warranty, these rugged converters include DC-OK, remote on/off, overload, and short-circuit protection, making them ideal for safe SELV power solutions.
TRACO POWER TMDC207212H industrial DC/DC converter Specifications:
- Input Voltage Range: 80-160 VDC
- Output Power: 20 Watt
- Isolation Voltage: 3000 VAC
- Operating Temperature: -40°C to +85°C without derating
- Efficiency: Up to 88%
- Ripple & Noise: 150-200 mVp-p depending on model
- Dimensions: Compact plastic package, specific dimensions in datasheet
- Protection: Overload, undervoltage, short circuit
- Certifications: UL 62368-1, EN 55032 class A, EN 55035
- Cooling: Natural convection
- Remote Control: Included
- Safety Features: DC-OK, remote on/off
- Housing Material: UL 94 V-0 rated plastic
- Reliability: MTBF 697,000 hours
- Environmental Compliance: Reach, RoHS
- Surge Voltage: 170 VDC max
- Input Current: 10 mA no load, 209 mA full load
- Response Time: 250 μs (max)
- Start-up Time: 30 ms typical
Buy the Traco Power TMDC 20H – Reliable Industrial Power Modules for Power Conversion
Purchase the Traco Power TMDC 20H Series 20 watt industrial DC/DC converters online today. Designed for harsh industrial environments, these modules offer high input voltage range, reinforced 3000 VAC isolation, and excellent efficiency up to 88%. With features like remote on/off, DC-OK indicator, and comprehensive protection including overload and short circuit safeguards, they are ideal for safe SELV power supplies in demanding applications. Fast delivery and reliable performance make them the perfect choice for your power conversion needs.
Order your Traco Power TMDC 20H Series 20 Watt industrial power converter today and give your projects the dependable, high-performance power they need for harsh environments.
