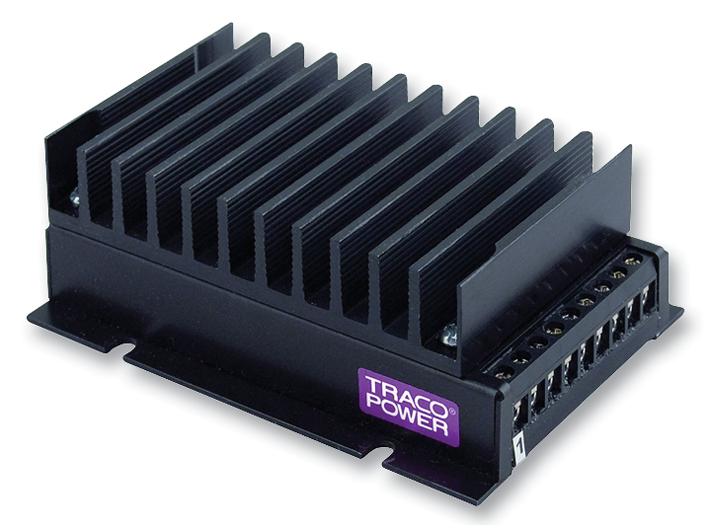

TRACO POWER TEP1504812WI DC/DC power converter
The TEP 150WI Series is a 150-watt DC/DC converter designed for harsh industrial and railway environments. It features ultra wide input voltage ranges (9-36, 18-75, 43-160 VDC), high efficiency up to 89%, and robust protections including overtemperature, reverse input, overvoltage, and input under-voltage lock-out. The module complies with EN 50155 for railway applications and offers excellent EMC immunity, thermal resistance, and vibration shock tolerance. It supports various output voltages, has a compact metal case, and operates efficiently within -40°C to +75°C, making it ideal for mobile and stationary industrial power supply applications.
TRACO POWER TEP1504812WI DC/DC power converter Specifications:
- Input voltage ranges: 9-36 VDC, 18-75 VDC, 43-160 VDC
- Input current (no load): 80-130 mA depending on model
- Surge voltage: 50-185 V
- Isolation Voltage: 2250 VDC (input to output), 1600 VDC (input to case)
- Efficiency: up to 89%
- Operating temperature: -40°C to +75°C
- Vibration: 50G / 3 axis / shock / thermal shock resistant
- Casing material: Metal, IP50 protection
- Dimensions: 52.5 mm x 83 mm x 21 mm
- Weight: 300 g
- Switching frequency: 203-330 kHz
- Compliance: UL 60950-1, IEC/EN 60950-1, EN 50155
- Environmental: RoHS, Reach compliant, flammability rated EN 45545-2
- Overtemperature protection at 110°C
Buy the Traco Power TEP 150WI – Reliable Power Conversion for Industrial Applications
Purchase the Traco Power TEP 150WI series 150-watt high-efficiency DC/DC converter online today. Designed for demanding industrial environments, it offers wide input ranges, reliable protections, and EN 50155 approval for railway applications. Its compact metal casing ensures durability, while high EMC immunity guarantees stable operations amidst electrical disturbances. Ideal for mobile and stationary projects, this converter supports various output voltages, provides over-temperature and reverse input protection, and meets strict safety standards, ensuring your systems are powered reliably and efficiently in harsh conditions.
Order your Traco Power TEP 150WI series 150W DC/DC converter today and enhance your industrial or railway power systems with dependable performance.
Frequently Asked Questions
Where can I buy TRACO POWER TEP1504812WI?
You can click on the BUY or RFQ button to purchase TEP1504812WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEP1504812WI?
You can download the TEP1504812WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEP1504812WI?
TRACO POWER
