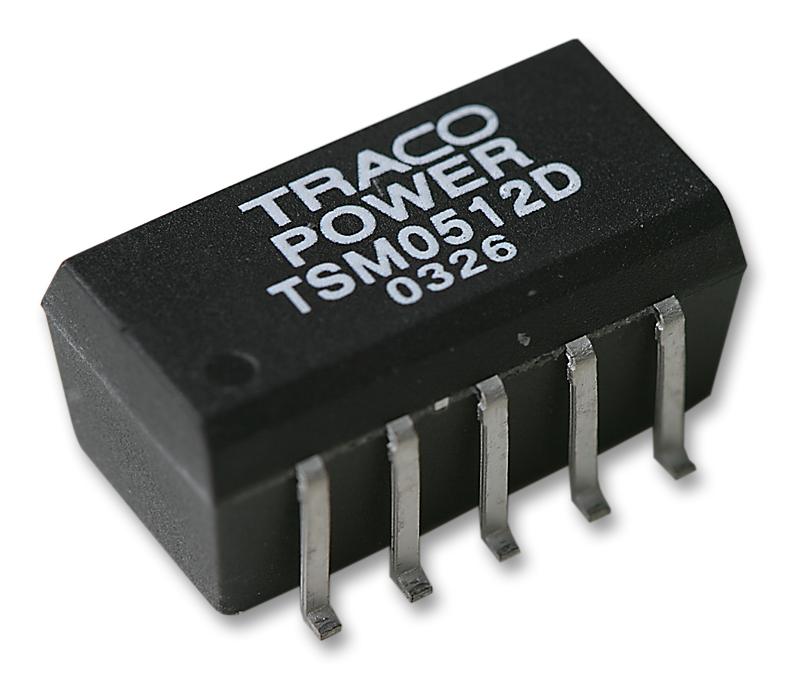

TRACO POWER TSM0512D DC/DC Converter
The TSM series are compact, isolated 1W DC/DC converters in a molded plastic SMD package suitable for automated soldering processes. They feature fully isolated outputs with 1000 VDC, high efficiency, and operate across -40°C to +85°C without derating. Designed for point of load power conversion, ground loop elimination, and noise reduction, these converters are RoHS compliant and have a lead-free design. They include optimized specifications for input/output isolation, regulation, ripple, noise, and maximum temperature ranges, making them ideal for industrial and digital electronics applications.
TRACO POWER TSM0512D DC/DC Converter Specifications:
- Input voltage range: 5V, 9V, 12V, 15V, 24V models
- Output voltage options: 5V, 9V, 12V, 15V (single/double output)
- Output current: up to 200 mA for 5V models, 110 mA for 9V, 80 mA for 12V, 65 mA for 15V models
- Isolation voltage: 1000 VDC between input and output
- Efficiency: up to 82%
- Operating temperature: -40°C to +85°C
- Ripple voltage: max 120 mVpk-pk at 20 MHz bandwidth
- Thermal coefficient: 0.02%/°C
- Dimensions: Small footprint, suitable for SMT applications
- Reflow solder temperature: up to 245°C
- RoHS compliant, lead-free construction
- MTBF: >2,000,000 hours based on MIL-HDBK-217F
- Input filter: internal capacitors with optional external filter for ripple reduction
- Short circuit protection: limited to 1 second duration
- Isolation resistance: >1 GOhm
- Conformance: UL 94V-0 flammability rated
Buy the Buy TracoPower TSM Series DC/DC Converter Part Number TSM0512D Online
Purchase the TracoPower TSM Series 1W isolated DC/DC converter online today to benefit from compact design, high efficiency, wide temperature operation, and complete safety standards. Ideal for industrial, digital, and load point applications, these converters offer 1000 VDC isolation, low ripple noise, and RoHS compliance. Their easy-to-solder SMD package and robust construction ensure reliable performance even in harsh environments. Experience seamless integration into your power management system by ordering the TSM Series online now for fast delivery and technical support.
Buy TracoPower TSM0512D now and enjoy reliable, efficient power conversion with 1W capacity, high isolation, and wide temperature operation for industrial electronics.
Frequently Asked Questions
Where can I buy TRACO POWER TSM0512D?
You can click on the BUY or RFQ button to purchase TSM0512D from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TSM0512D?
You can download the TSM0512D datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TSM0512D?
TRACO POWER
