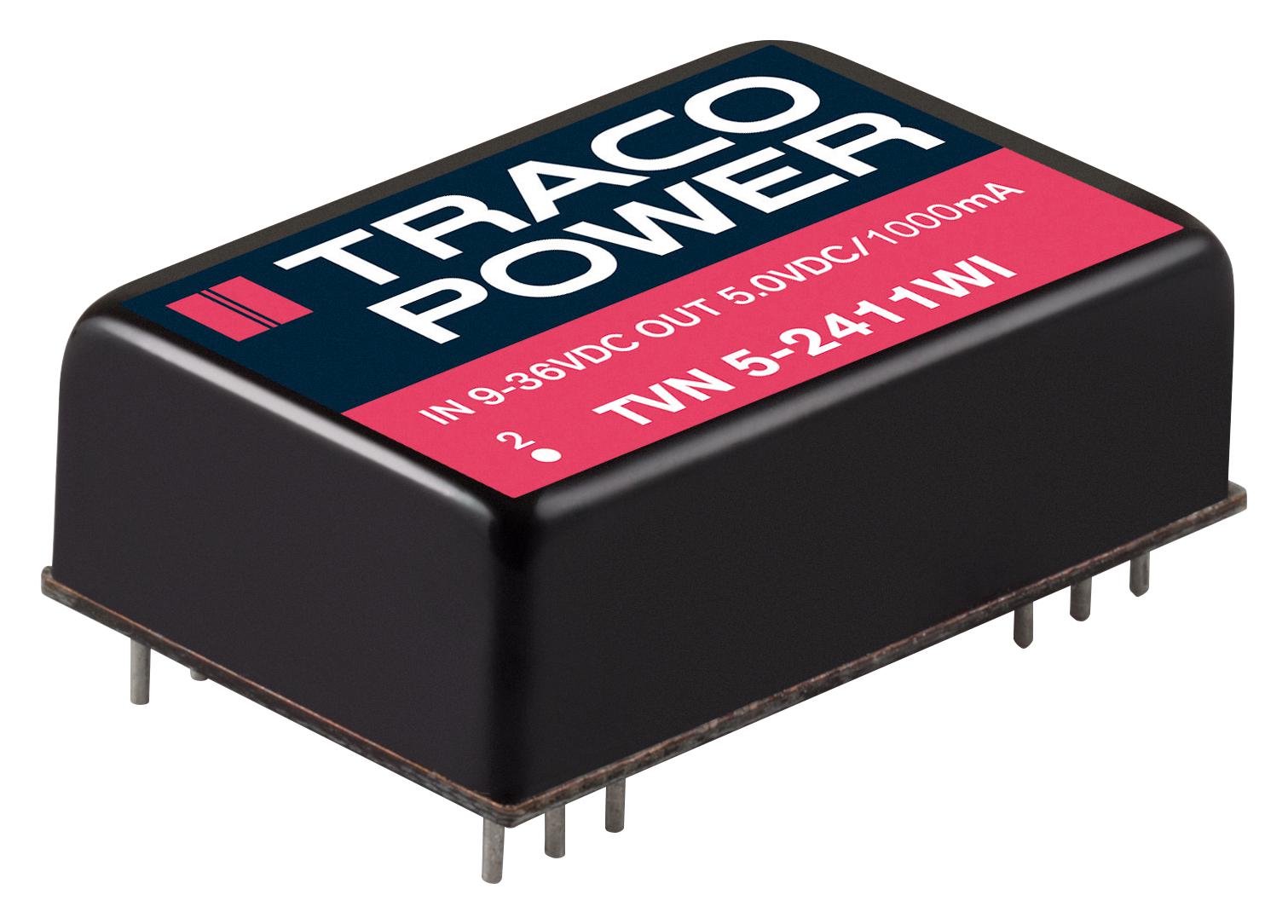

TRACO POWER TVN52421WI DC/DC Converter
The TVN 5WI series is a 5 Watt ultra low ripple and noise DC/DC converter suitable for audio, measurement, and detection circuits. Featuring a 6-side shielded metal package, it operates over a wide input voltage range and includes features like remote On/Off, overvoltage, undervoltage lockout, and short circuit protection. With efficiencies up to 89%, it supports temperatures from -40°C to +90°C, with high isolation voltage of 1600 VDC, making it ideal for industrial and electronics applications requiring reliable, low-noise power conversion.
TRACO POWER TVN52421WI DC/DC Converter Specifications:
- Input voltage: 4.5-12V, 9-36V, 18-75VDC, surge voltage: 16-100 V max.
- Output voltage: 3.3V, 5V, 12V, 15V, 24V, with respective max currents up to 1515 mA.
- Efficiency: up to 89%, ripple: 10 mVp-p typical, regulation within 0.2%.
- Temperature range: -40°C to +90°C, case temperature up to +105°C, derating above 85°C.
- Isolation voltage: 1600 VDC, isolation capacitance: 1/200 pF, resistance: >1 GΩ.
- Switching frequency: 300 kHz, MTBF: 4,400,000 hours, supports natural convection cooling.
- Physical: Copper case, epoxy potting, weight: 15.39 g, soldering temp: 265°C for max 10 seconds.
Buy the Traco Power Series TVN 5WI: 5 Watt Low Ripple DC/DC Converter
Experience reliable power conversion with the Traco Power TVN 5WI series. This 5 Watt DC/DC converter offers ultra low ripple and noise, broad input voltage ranges, and high isolation for use in audio, measurement, and industrial circuits. Featuring remote On/Off, overvoltage, undervoltage lockout, and short circuit protection, it performs efficiently from -40°C to +90°C. Perfect for demanding environments, it ensures stable operation with efficiencies up to 89% and robust thermal management, making it the ideal choice for engineers and technicians seeking quality power modules online.
Get Traco Power TVN 5WI today—built for precision and long-lasting durability in industrial and electronic power applications.
Frequently Asked Questions
Where can I buy TRACO POWER TVN52421WI?
You can click on the BUY or RFQ button to purchase TVN52421WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TVN52421WI?
You can download the TVN52421WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TVN52421WI?
TRACO POWER
