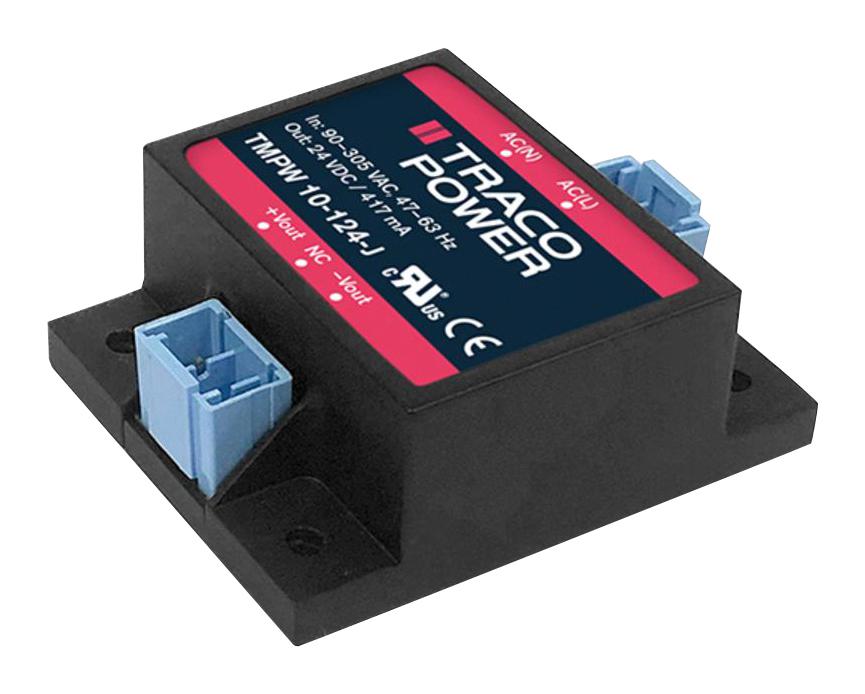

TRACO POWER TMPW10124J Industrial Power Supply
The TMPW 10-J is a compact 10 Watt AC/DC power supply designed for industrial and household applications. It features a wide input voltage range of 90-305 VAC, high efficiency up to 86%, and an operating temperature range of -40°C to +70°C. The module provides 47000 VAC 1/0-isolation, low no-load input power below 0.1W, and internal EN 55032 class B filter. Encased in a sealed plastic case, it is suitable for protection class II applications, ensuring safety, reliability, and compliance with IEC/EN/UL 62368-1 standards.
TRACO POWER TMPW10124J Industrial Power Supply Specifications:
- Power: 10 Watt
- Input Voltage: 90-305 VAC, 100-250 VDC
- Input Frequency: 47-63 Hz
- Efficiency: Up to 86%
- Output Voltage Options: 5 V, 12 V, 15 V, 24 V
- Output Current: 2000 mA, 833 mA, 667 mA, 417 mA respectively
- Isolation Voltage: 47000 VAC
- Operating Temperature Range: -40°C to +70°C
- No-load Power: <0.1W
- Certifications: IEC, UL, EN 60335-1, IEC 62368-1
- Protection Class: II
- Dimensions: 2.17 in x 1.08 in
- Housing Material: UL 94 V-0 plastic
- Safety Standards: EN 62368-1, IEC 62368-1
- Temperature Coefficient: 0.02%/K max.
- Ripple and Noise: Up to 240 mVp-p
- Short Circuit Protection: Yes
- Overvoltage Protection: 105-145% of Vout
- Relay Response Time: Max. 500 ms
- Humidity: 95% max.
- Vibration Resistance: 2g, 3 axes, 60 min
Buy the Traco Power TMPW10124J – Reliable DC Power Supply for Industrial Applications
Purchase the Traco Power TMPW 10-J series online now to secure a durable, efficient, and compact power solution for your industrial or household technology needs. This 10 Watt power supply offers a wide input voltage range of 90-305 VAC, with high efficiency up to 86%, low no-load power consumption, and comprehensive safety standards including UL and IEC certifications. Its sealed plastic case and internal filters save space and simplify installation, making it ideal for demanding applications requiring reliable and safe power delivery. Buy today and enhance your projects with proven quality.
Order your Traco Power TMPW 10-J series 24V power supply today and ensure your industrial projects benefit from high efficiency and proven reliability.
Frequently Asked Questions
Where can I buy TRACO POWER TMPW10124J?
You can click on the BUY or RFQ button to purchase TMPW10124J from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMPW10124J?
You can download the TMPW10124J datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMPW10124J?
TRACO POWER
