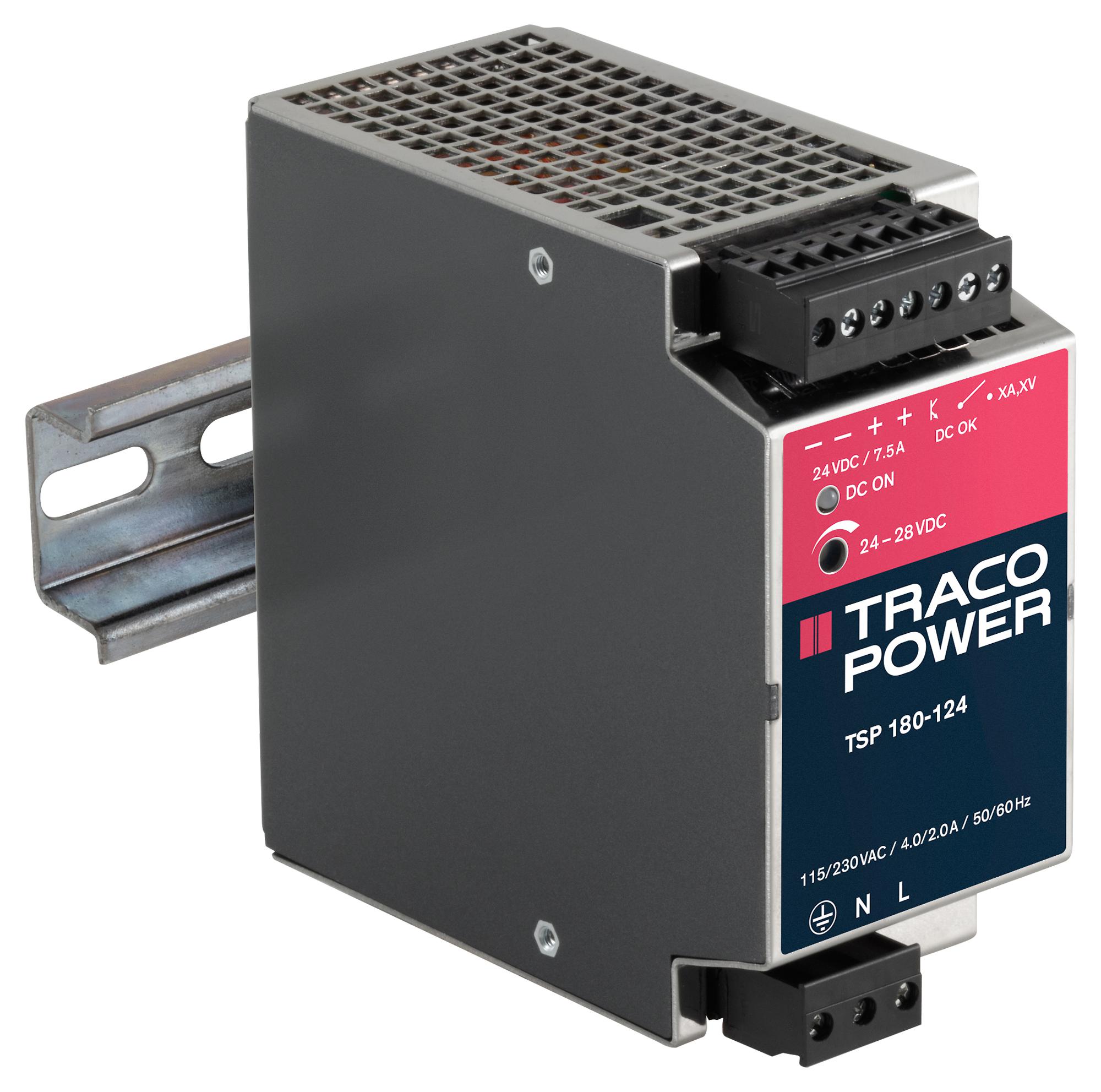

TRACO POWER TSP180124 Industrial Power Supply
The TSP180-124 is a high-performance industrial power supply designed for DIN rail mounting, offering 180W output with adjustable voltage up to 24VDC. It features robust metal housing, extensive safety certifications including UL and ATEX (optional), and high electromagnetic compatibility standards for demanding environments. The power supply supports wide input voltage range (85-264 VAC), has a remote on/off control, includes overload and over-temperature protection, and provides various status signals for system reliability. Its reliable operation across -25°C to +70°C makes it ideal for complex industrial automation and machinery applications.
TRACO POWER TSP180124 Industrial Power Supply Specifications:
- Output Power: 180 W
- Output Voltage: 24 VDC (adjustable 24-28 VDC)
- Maximum Output Current: 7.54 A
- Input Voltage Range: 85-264 VAC (Universal, Autoselect)
- Operating Temperature: -25°C to +70°C
- Efficiency: 87% typical
- Protection Features: Overload, Over-temperature, Short-circuit, Over-voltage
- Standards & Certifications: UL/cUL 60950-1, UL 508, ATEX (optional), IECEx (optional)
- Housing: Robust, metal, DIN rail or wall mounting options
- Dimensions: 125 mm x 124 mm x 45 mm
- Weight: 0.7 kg
- Electromagnetic Compatibility: EN 61204-3, EN 55011, EN 61000-6-3, EN 61000-6-2
- Additional: Alarm signal, DC-OK indicator, External On/Off control
- Certification: UL, CE, ATEX (optional)
Buy the Traco Power Series Power Supply: TSP180124
Secure your operational efficiency by purchasing the Traco Power Series TSP180124 today online. This reliable 180W industrial power supply features adjustable voltage, robust metal housing, extensive safety certifications, and high electromagnetic compatibility. Its wide input voltage range and operational temperature from -25°C to +70°C make it ideal for challenging environments. Easy installation with DIN rail mounting, integrated safety features, and status signals provide peace of mind. Order now to ensure your machinery operates smoothly with dependable power delivery.
Order your Traco Power Series TSP180124 industrial power supply today and ensure reliable, efficient power for your demanding automation projects.
Frequently Asked Questions
Where can I buy TRACO POWER TSP180124?
You can click on the BUY or RFQ button to purchase TSP180124 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TSP180124?
You can download the TSP180124 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TSP180124?
TRACO POWER
