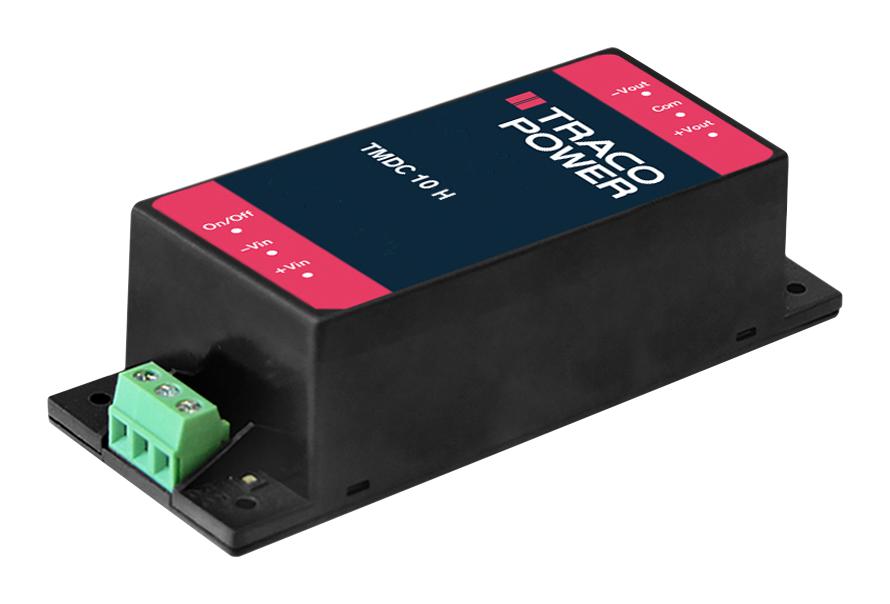

TRACO POWER TMDC107212H Industrial DC/DC Converter
The TMDC 10H Series is a compact, fully encapsulated 10-watt industrial DC/DC converter designed for harsh environments. It features a high 2:1 input voltage range from 80-160 VDC, reinforced 3000 VAC isolation, and fully regulated outputs for reliable operation. This series offers low emissions (EN 55032 class A), high EMC immunity (EN 55035), and a wide operating temperature range from -40°C to +70°C without derating. Certified to safety standards UL 62368-1, it includes DC-OK and remote on/off functions, making it ideal for industrial and battery applications requiring reinforced safety isolation.
TRACO POWER TMDC107212H Industrial DC/DC Converter Specifications:
- Input Voltage Range: 80-160 VDC
- Input Surge Voltage: 170 VDC max. (1 s)
- Input Current at No Load: 20 mA typ.
- Input Current at Full Load: 108 mA typ.
- Output Power: 10 Watts
- Output Voltage Options: 5.1 V, 12 V, 15 V, 24 V, ±12 V, ±15 V, ±24 V
- Output Current: 2'000 mA (5.1 V), 833 mA (12 V), 666 mA (15 V), 416 mA (24 V), 416 mA (±12 V), 333 mA (±15 V), 208 mA (±24 V)
- Efficiency: 83-85%
- Isolation Voltage: 3000 VAC reinforced
- Operating Temperature Range: -40°C to +70°C without derating
- Ripple and Noise: 100-200 mVp-p depending on output model
- Short Circuit Protection: Continuous, automatic recovery
- Safety Certifications: UL 62368-1, IEC 62368-1
- EMC Compliance: EN 55032 class A, EN 55035 immunity
- Housing Material: UL 94 V-0 rated plastic
- Connection Type: Screw Terminal
- Dimensions: Approx. 59 x 28 x 20 mm
- Weight: 69 g
- Cooling: Natural convection
Buy the Traco Power Series TMDC 10H DC/DC Converter: TMDC 10-7212H
Discover the reliable Traco Power TMDC 10H series, a 10-watt fully encapsulated DC/DC converter perfect for harsh industrial settings. With a 80-160 VDC input range, reinforced 3000 VAC isolation, and regulated outputs, it ensures safety and stability. Certified to UL 62368-1 and compliant with EMC standards EN 55032 and EN 55035, it offers high efficiency, wide temperature operation from -40°C to +70°C, and features DC-OK and remote on/off functions. Ideal for industrial, battery, and automation applications requiring robust safety and performance.
Order your Traco Power Series TMDC 10H 12V DC input power converter today and ensure reliable, safe operation in demanding industrial environments.
Frequently Asked Questions
Where can I buy TRACO POWER TMDC107212H?
You can click on the BUY or RFQ button to purchase TMDC107212H from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMDC107212H?
You can download the TMDC107212H datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMDC107212H?
TRACO POWER
