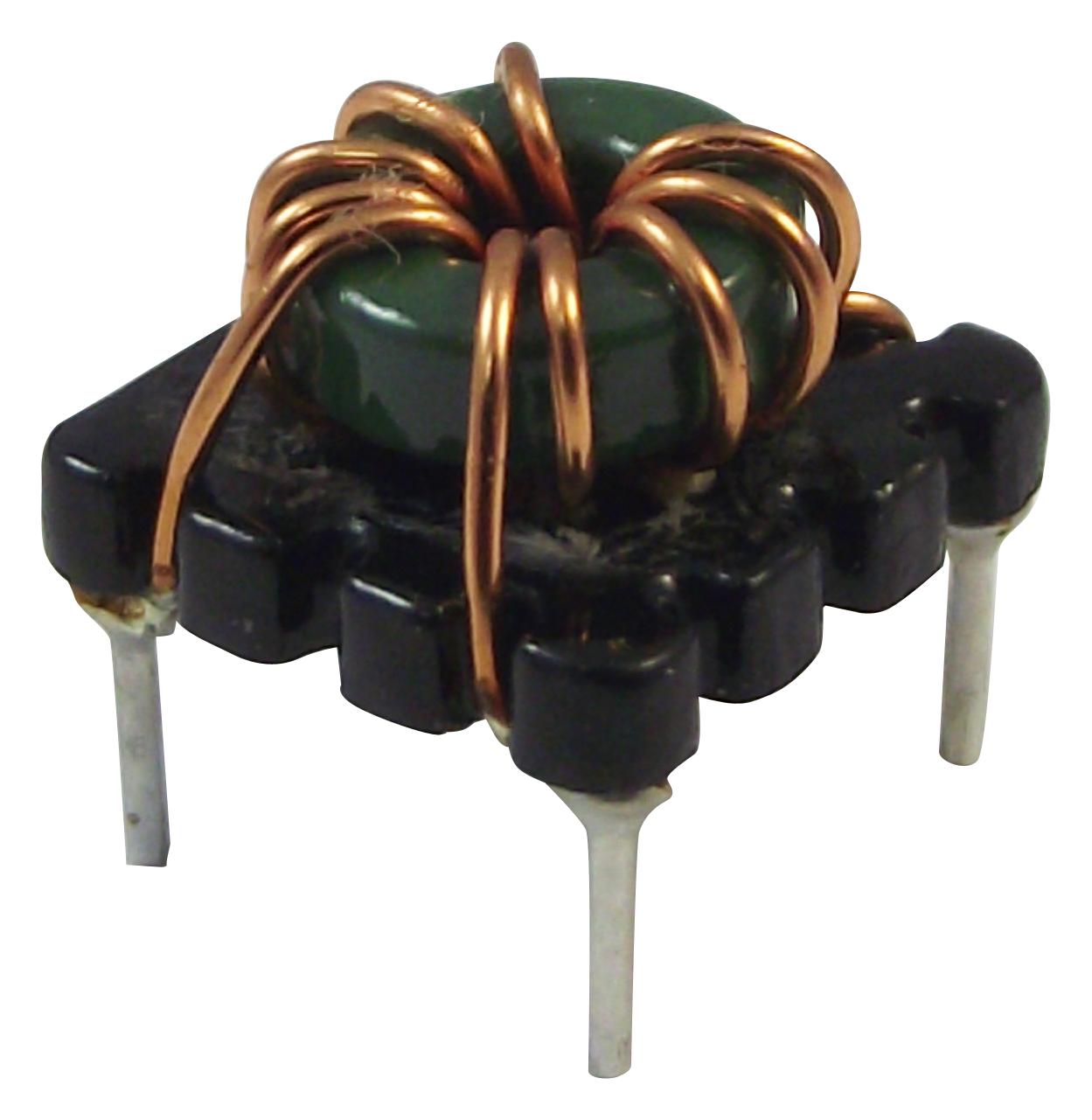

TRACO POWER TCK075 Common Mode Choke
The TCK-075 is a common mode choke designed for high-frequency noise filtering in power electronics. Featuring an inductance of 33.3 μH ±20% at 10 kHz/50 mV, it offers a low impedance of up to 9 mOhm and a rated current of 4A. With a maximum rated voltage of 500 VDC between windings, it operates effectively within a temperature range of approximately -40°C to +105°C. Its compact dimensions and reliable performance make it suitable for industrial electronics, power supplies, and noise suppression applications.
TRACO POWER TCK075 Common Mode Choke Specifications:
- Inductance: 33.3 μH ±20% at 10 kHz/50 mV
- Impedance (DCR): 9 mOhm max.
- Rated Current: 4A max.
- Rated Voltage: 500 VDC between windings
- Operating Temperature: -40°C to +105°C
- Dimensions: 9.5 mm x 9.5 mm x 7.0 mm max, pin length 2.5 mm min, 7.62 mm ±0.2 spacing
- Material: Standard magnetic core with copper wire winding
- Compliance: RoHS compliant, suitable for industrial environments
Buy the Traco Power TCK-075 – Reliable Common Mode Choke for Industrial Applications
Purchase the Traco Power TCK-075 common mode choke online today to ensure optimal noise filtering and power stability in your electronic projects. With a compact design, high rated current of 4A, and a maximum voltage of 500 VDC, this choke offers excellent performance for industrial power supplies, noise suppression, and electromagnetic interference mitigation. Its operating temperature range of -40°C to +105°C ensures reliable operation in harsh environments. Secure your supply chain by ordering now for quick delivery and guaranteed quality for your next electronics application.
Order your Traco Power TCK-075 series high-frequency noise filter today and enhance your power electronic systems with dependable power quality and noise suppression.
Frequently Asked Questions
Where can I buy TRACO POWER TCK075?
You can click on the BUY or RFQ button to purchase TCK075 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TCK075?
You can download the TCK075 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TCK075?
TRACO POWER
