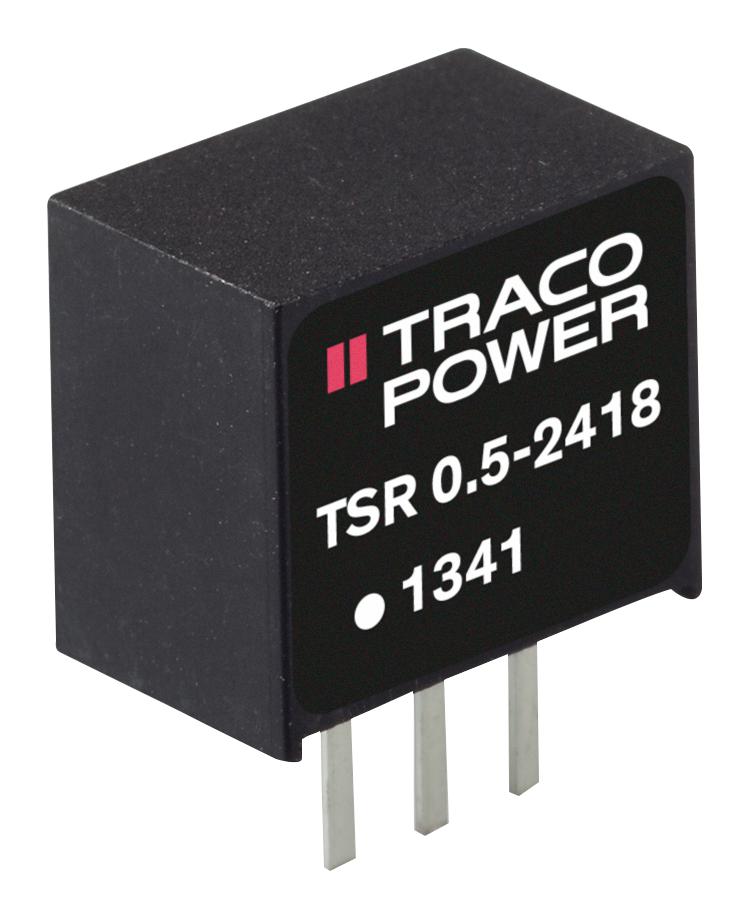

TRACO POWER TSR052490 switching regulator
The TSR 0.5 series is a collection of compact, high-efficiency non-isolated switching regulators designed for industrial applications. These SIP packages operate at up to 97% efficiency, providing stable, adjustable output voltages from 1.5 VDC to 15 VDC with input voltages ranging from 1.5 VDC to 32 VDC. They feature excellent line and load regulation, low standby current, over-temperature and short circuit protection, and operate within an ambient temperature range of -40°C to 90°C. Ideal for replacing linear regulators in energy-sensitive circuits, ensuring reliable and efficient power conversion in industrial and automation systems.
TRACO POWER TSR052490 switching regulator Specifications:
- Input Voltage Range: 1.5 VDC to 32 VDC
- Output Voltage: 1.5 VDC to 15 VDC (adjustable)
- Output Current: Up to 0.5 A
- Efficiency: Up to 97%
- Operating Temperature Range: -40°C to +90°C
- Over-temperature & Short circuit protection
- Switching frequency: 330 kHz +50 kHz
- Ripple & Noise: Max. 40 mVp-p
- Protection: Continuous short circuit, automatic recovery
- Physical: Non-conductive plastic casing, UL94V-0 rated
- Weight: 1.95 g
- Isolation Voltage: None
- MTBF: >2,000,000 hours at +25°C
- Compliance: RoHS, REACH
- Input Capacitance: 22 pF / 50 V for input higher than 24 VDC
Buy the Traco Power TSR 0.5 – Reliable Switching Regulator for Industrial Applications
Purchase the Traco Power TSR 0.5 series switching regulators online today and ensure dependable, high-efficiency power solutions for your industrial projects. These compact and reliable regulators feature adjustable output voltages, over-temperature and short circuit protections, and operate efficiently at up to 97%. Their robust design with excellent regulation, low standby current, and wide temperature range makes them ideal for replacing linear regulators in energy-sensitive applications. Get guaranteed quality, quick delivery, and expert support when you buy online now.
Order your Traco Power TSR 0.5 series switch mode power supply today and ensure your projects benefit from highly efficient, robust power regulation.
Frequently Asked Questions
Where can I buy TRACO POWER TSR052490?
You can click on the BUY or RFQ button to purchase TSR052490 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TSR052490?
You can download the TSR052490 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TSR052490?
TRACO POWER
