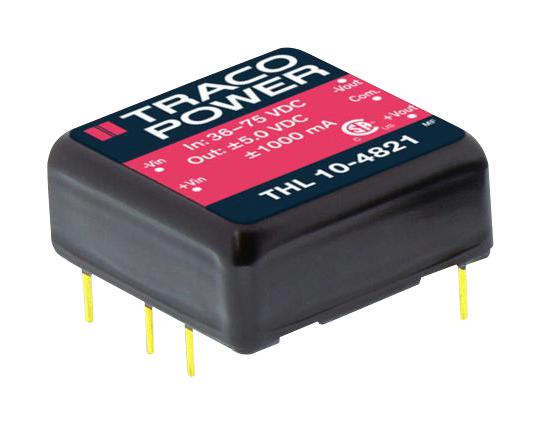

TRACO POWER THL102410 DC/DC Converter
The THL 10 series from Tracopower comprises versatile 10W DC/DC converters housed in a compact 1 x 1-inch metal case. These power modules feature industry-standard pinouts, wide 2:1 input voltage range, and an input filter compliant with EN 55022 Class A standards without external components, simplifying design integration. They provide protections against short circuits and overvoltage, operate from -40°C to +80°C (up to +85°C with heatsink), and are suitable for instrumentation, industrial electronics, and communication systems. Key features include various output voltages up to 15V, currents to 2.5A, efficiencies up to 89%, and 1500VDC isolation with high reliability and safety standards.
TRACO POWER THL102410 DC/DC Converter Specifications:
- Power: 10 Watt
- Package: 1 inch x 1 inch metal case with isolated baseplate
- Input Voltage Range: 12 VDC, 24 VDC, 48 VDC (wide 2:1 ratio)
- Output Voltages: 3.3V, 5.1V, 12V, 15V, ±5V, ±12V, ±15V (various models)
- Maximum Output Current: 670 mA to 2.5 A depending on model
- Efficiency: up to 89%
- Isolation Voltage: 1500 VDC
- Isolation Capacitance: 2000 pF
- Isolation Resistance: >1000 MΩ
- Ripple & Noise: 80-100 mVp-p (20 MHz bandwidth)
- Operating Temperature Range: -40°C to +80°C, up to +85°C with heatsink
- Switching Frequency: approximately 300 kHz
- Protection: Short circuit and overvoltage protection
- Certifications: UL/cUL 60950-1, IEC/EN 60950-1
- Dimensions: 25.4 mm x 25.4 mm x appropriate height
- Material: Metal housing, epoxy potting, tinned copper pins
- Storage Temperature: -55°C to +125°C
- Soldering Temperature: Max +260°C / 10 sec
Buy the Tracopower Series THL 10 Power: THL102410
Order the Tracopower THL102410 series DC/DC converter online today and enhance your power management systems with reliable, efficient, and compact modules designed for industrial, communication, and instrumentation equipment. Benefit from high efficiency, wide input voltage range, and robust protections including short circuit and overvoltage safeguards. With certifications to UL and IEC standards and a three-year warranty, this power module ensures optimal performance, safety, and ease of integration for your projects. Act now and ensure stable power conversion in your critical applications.
Buy Tracopower THL102410 now and experience unmatched reliability and performance in industrial power applications.
