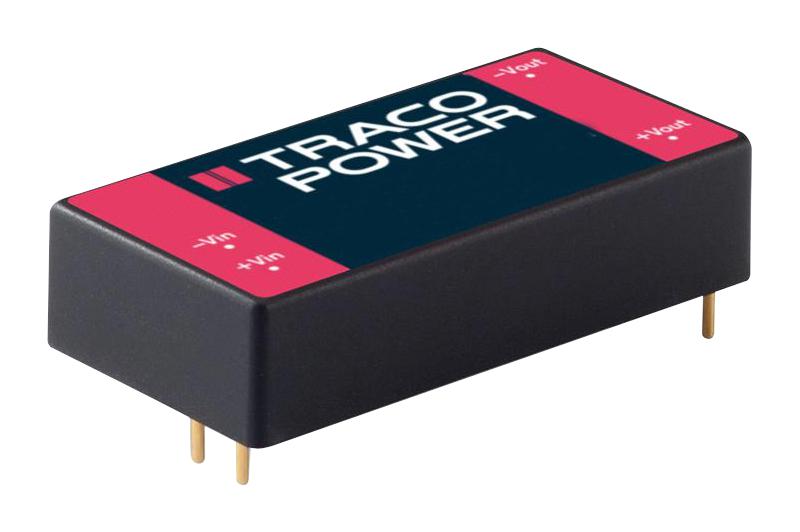

TRACO POWER TRI154813 industrial power converter
The TRI 15 series is a high isolation, 15-watt DC/DC power converter offering reinforced insulation capable of withstanding high test voltages up to 8000 VDC. Compact with a 2x1-inch footprint, it features a wide 2:1 input voltage range, precise regulation, and high efficiency up to 90%. Suitable for industrial, transportation, and instrumentation applications, it provides low no-load power consumption, integrated EN 55032 class A filter, overload and overvoltage protection, and operates across -40°C to +85°C with derating. Compliance with IEC, UL, and EN safety standards ensures reliable performance in demanding environments.
TRACO POWER TRI154813 industrial power converter Specifications:
- Input Voltage Range: 9-18 VDC, 18-36 VDC, 36-75 VDC, 12 V, 24 V, 48 V models
- Input Current (full load): 20 mA at 12 V, 15 mA at 24 V, 10 mA at 48 V
- Surge Voltage: 25 VDC (12 V models), 50 VDC (24 V models), 100 VDC (48 V models)
- Output Voltage Tolerance: ±1%
- Efficiency: Up to 90%
- Output Voltage Regulation: 0.5% single, 1% dual
- Ripple & Noise: 50-150 mVp-p (varies by output)
- Temperature Range: -40°C to +85°C (derating applies above +65°C)
- Isolation Test Voltage: 8000 VDC (1s), 5940 VDC (60s), Working Voltage: 1000 VACrms
- Protection: Overload, Overvoltage, Short Circuit, Automatic Recovery
- Dimensions: 2” x 1” x 0.4” (51 x 25.4 x 10 mm)
- Housing Material: UL 04 V-O Rated Plastic
- Insulation System: Reinforced Insulation
- Switching Frequency: 285 kHz Typ.
- Certifications: IEC/EN/UL 62368-1, EN 55032 Class A, FCC Class A
- Operating Temperature: -40°C to +85°C with derating
- Humidity: Up to 95% (non-condensing)
- Weight: 30g
- Connection: Through-Hole (THD)
Buy the TracoPower TRI 15 813 – Reliable Industrial DC/DC Converter for Power Supplies
Order the reliable TracoPower TRI 15 813 now and enjoy high efficiency, reinforced isolation, and a wide input voltage range perfect for demanding industrial automation, transportation, and instrumentation applications. With certified safety standards, automatic overload protection, and operating temperatures from -40°C to +85°C, this compact 15-watt power converter guarantees stable operation in challenging environments. Secure your power solutions today with this high-quality, UL and IEC-certified device for dependable, long-lasting performance.
Buy TracoPower TRI 15 813 now and experience unmatched reliability and performance in industrial power conversion.
Frequently Asked Questions
Where can I buy TRACO POWER TRI154813?
You can click on the BUY or RFQ button to purchase TRI154813 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TRI154813?
You can download the TRI154813 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TRI154813?
TRACO POWER
