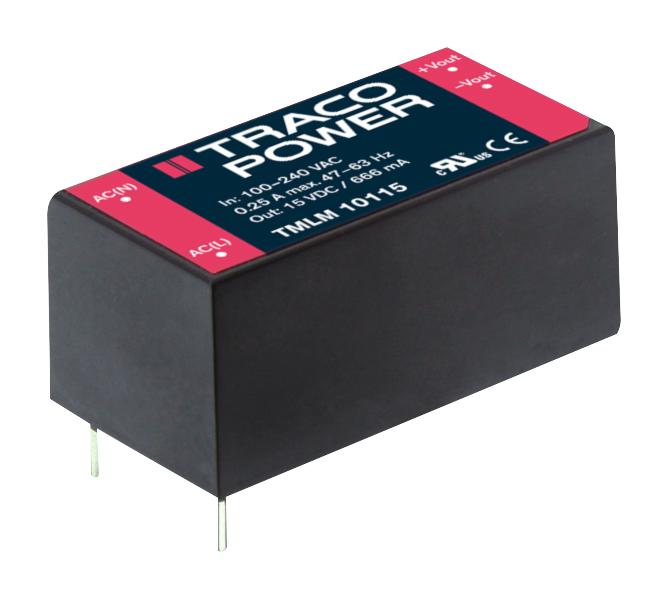

TRACO POWER TMLM04225 Power Module
The TMLM Series switching power modules offer the highest power density in a fully encapsulated package, ideal for space-critical applications in industrial and commercial electronic equipment. These AC/DC power supplies support universal input voltages from 90-264 VAC or 120-370 VDC, with efficiencies up to 83%. They feature low ripple and noise, short circuit, overload, and overvoltage protections, and are certified for safety standards such as UL 60950-1. Their robust design ensures high reliability in demanding environments, making them perfect for PCB mounting in various automation and control systems.
TRACO POWER TMLM04225 Power Module Specifications:
- Input Voltage: 90-264 VAC, 47-440 Hz, or 120-370 VDC
- Output Power: 4.0 Watt
- Output Voltage: 24 VDC
- Maximum Output Current: 167 mA
- Efficiency: Up to 73%
- Ripple & Noise: < 300 mV (20 MHz bandwidth)
- Protection: Short circuit, overload, overvoltage
- Isolation Voltage: 3,000 VAC (Input/Output)
- Operating Temperature: -25°C to +60°C with derating above 50°C
- Dimensions: Approx. 30 mm x 17 mm x 8 mm
- Weight: Approximately 26 g
- Safety Certifications: UL 60950-1, IEC/EN 60950-1
- EMC Compliance: EN 55022 class B, FCC level B
- Housing: Fully encapsulated plastic case, UL 94V-0 rated
- Approvals: Suitable for worldwide markets
- Reliability: MTBF > 250,000 hours at +25°C
- Vibration and Shock Resistance: According to IEC standards
- Operating Humidity: Up to 95% non-condensing
Buy the TRACO Series TMLM 24VDC Power Module: TMLM04225
Secure your electronic projects with the TRACO Series TMLM04225 power module. Designed for space-critical applications, it features high efficiency, low ripple, and all necessary safety certifications. Ideal for industrial and commercial equipment, this 4 Watt module supports universal input voltage from 90-264 VAC and provides a stable 24VDC output with protection features including short circuit and overvoltage. Its robust encapsulated design ensures durability and high reliability, making it the perfect choice for PCB mounting in demanding environments. Purchase online today for quick and dependable power solutions.
Buy TRACO Series TMLM 04225 power module now and experience unmatched reliability and performance in industrial electronics.
Frequently Asked Questions
Where can I buy TRACO POWER TMLM04225?
You can click on the BUY or RFQ button to purchase TMLM04225 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMLM04225?
You can download the TMLM04225 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMLM04225?
TRACO POWER
