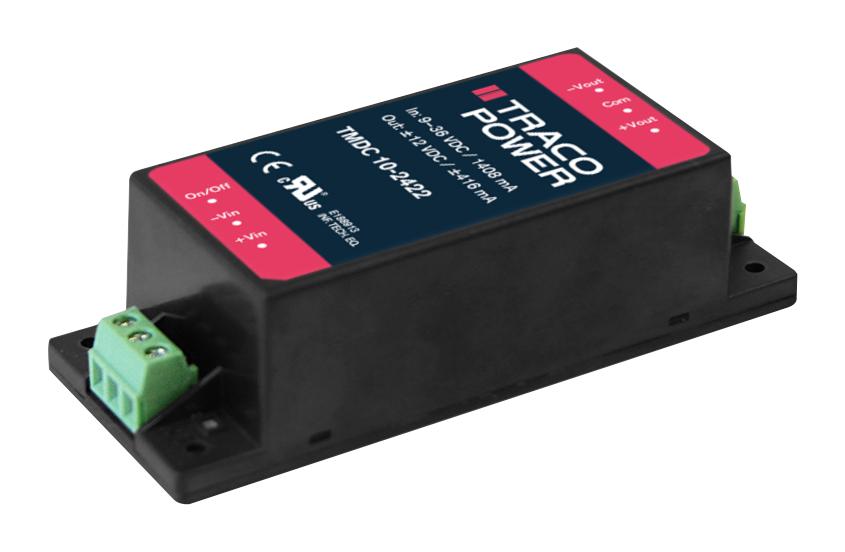

TRACO POWER TMDC104815 Industrial DC/DC Converter
The TMDC 10 Series by Traco Power offers fully encapsulated 10-watt DC/DC converter modules suitable for harsh industrial environments. These compact, plastic-encased modules feature an ultra-wide input voltage range of 9-36 VDC or 18-75 VDC, with multiple output options including 5.1 V, 12 V, 15 V, 24 V, and bipolar outputs (-12 V, -15 V, -24 V). They provide high efficiency up to 86%, protection against overload, short circuit, and undervoltage, and are compliant with UL 62368-1 safety standards. Ideal for industrial automation, control systems, and rugged electronic applications, these converters maintain operation from -50°C to +105°C without derating, offering reliable power with built-in filters for electromagnetic compatibility and isolated 3000 VDC outputs.
TRACO POWER TMDC104815 Industrial DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC or 18-75 VDC with ultra-wide 4:1 ratio
- Output Voltage Options: 5.1 V, 12 V, 15 V, 24 V, ±12 V, ±15 V, ±24 V
- Output Current: up to 416 mA depending on model
- Efficiency: up to 86%
- Operating Temperature Range: -50°C to +105°C without derating
- Isolation Voltage: 3000 VDC
- Dimensions: 3.11 x 1.34 x 0.87 inches (79 x 34 x 22 mm)
- Protection: Overload, short circuit, undervoltage, and over-temperature
- Certification: UL 62368-1, IEC 62368-1
- EMC Compliance: EN 55032 Class A, EN 55035 Immunity
- Cooling: Natural convection, 20 LFM
- Remote Control: Remote On/Off, Voltage Controlled, 3.5–12 VDC
- Reliability: MTBF approx. 4,100,000 hours
- Housing: UL 94V-0 rated plastic resin
- Connection: Screw terminal
- Weight: 65.89 g
- Type: Fully encapsulated, industrial-grade power supply
Buy the Traco Power TMDC10 – Reliable Industrial DC-DC Converter for Rugged Applications
Purchase the Traco Power TMDC 10 Series online for a robust 10-watt industrial DC/DC converter designed to operate reliably in extreme temperatures from -50°C to +105°C. Featuring an ultra-wide input voltage range of 9-36 VDC or 18-75 VDC, these fully encapsulated modules provide high efficiency up to 86%, protected against overloads, short circuits, and undervoltage conditions. With 3000 VDC isolation, electromagnetic compatibility filters, and certifications including UL 62368-1, they are ideal for demanding industrial automation and control systems requiring dependable power conversion in rugged environments. Order now to ensure reliable power with easy terminal connections and remote on/off control.
Get Traco Power TMDC10 today—built for precision, durability, and harsh industrial environments requiring stable power solutions.
Frequently Asked Questions
Where can I buy TRACO POWER TMDC104815?
You can click on the BUY or RFQ button to purchase TMDC104815 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMDC104815?
You can download the TMDC104815 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMDC104815?
TRACO POWER
