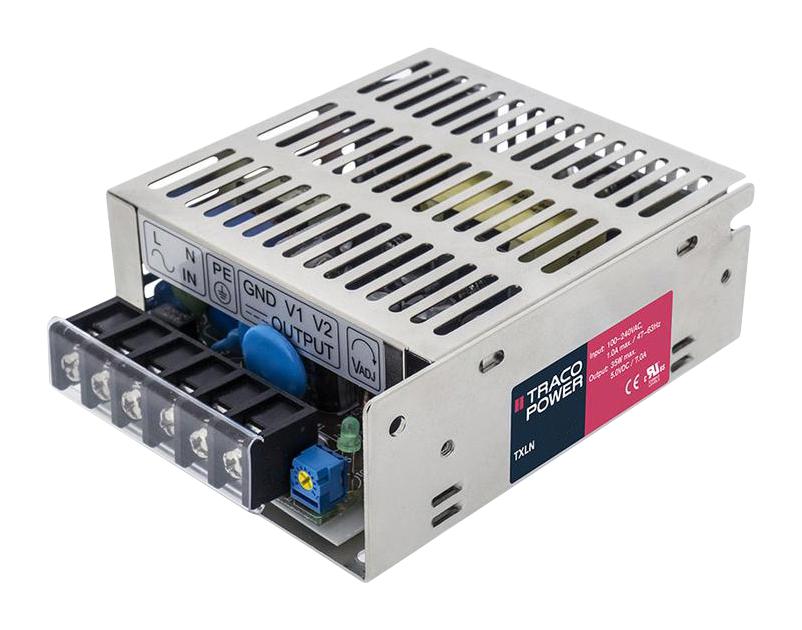

TRACO POWER TXLN03522M2 Industrial Power Supply
The TXLN 035 series is a family of low-profile, encased power supplies suitable for cost-sensitive applications. Featuring a durable metal enclosure and screw terminal connections, they are easy to install. These power supplies support universal input voltage (85-264 VAC) and meet European EMC standards and the Low Voltage Directive (LVD). They are convection-cooled (fanless) with high efficiency up to 83%, and include protections against short circuits, overvoltage, and overload. Certified to IEC/EN/UL 62368-1 safety standards, they come with a 3-year warranty. Designed with a class I connection to PE and rated for pollution degree PD 2 and overvoltage category OVC II, they operate effectively within a temperature range of -20°C to +70°C. Their switching frequency is between 58 kHz and 72 kHz, utilizing PWM, all housed in an aluminum case with screw terminals.
TRACO POWER TXLN03522M2 Industrial Power Supply Specifications:
- Input Voltage: 85-264 VAC
- Input Frequency: 50-60 Hz
- Output Power: 35 W
- Efficiency: up to 83%
- Protection: Short circuit, overvoltage, overload
- Safety Certifications: IEC/EN/UL 62368-1
- Housing Material: Aluminum
- Cooling: Convection cooled (fanless)
- Operating Temperature Range: -20°C to +70°C
- Relative Humidity: 90% max. (non-condensing)
- Pollution Degree: PD 2
- Over Voltage Category: OVC II
- Isolation Test Voltage: Input to output 3,000 VAC
- Working Voltage (Rated): 275 VAC
- Weight: 350 g
- Connection Type: Screw terminal
- Switching Frequency: 58-72 kHz
- EMC Compliance: EN 61000-6-3, EN 61000-6-1
- Certifications: IEC/EN/UL 62368-1
- Reliability: 400,000 hours MTBF (single output)
Buy the Traco Power TXLN03522M2 – Reliable Power Supply for Industrial Applications
Secure reliable power for your industrial systems with the Traco Power TXLN power supply series. Offering 35 W output, universal input, and up to 83% efficiency, these fanless power supplies are perfect for space-constrained environments. Their robust aluminum case enhances durability, while built-in protections safeguard against short circuits, overvoltage, and overloads. Certified for safety standards IEC/EN/UL 62368-1, they are suitable for a wide temperature range. Easy to install with screw terminals, these power supplies ensure continuous operational reliability for demanding industrial applications.
Order your Traco Power Series TXLN03522M2 today and ensure your industrial projects get dependable, high-efficiency power with proven safety standards.
Frequently Asked Questions
Where can I buy TRACO POWER TXLN03522M2?
You can click on the BUY or RFQ button to purchase TXLN03522M2 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TXLN03522M2?
You can download the TXLN03522M2 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TXLN03522M2?
TRACO POWER
