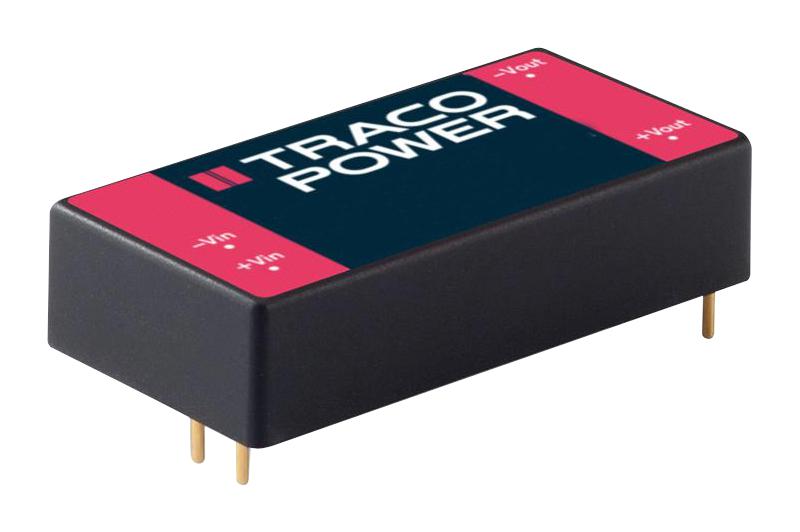

TRACO POWER TRI154815 DC/DC Converter
The TRI 15 Series is a compact, high-efficiency 15 Watt DC/DC converter designed for industrial, transportation, and instrumentation applications. It features reinforced 8000 VDC isolation, wide 2:1 input voltage range (9-75 VDC), and regulated, isolated output voltages. The device offers high transient immunity of 15 kV/μs, low no-load power consumption, and internal EN 55032 Class A filtering. Certification to IEC/EN/UL 62368-1 ensures safety, making it ideal for demanding environments with operating temperatures from -40°C to +85°C, with derating. Designed for reliable performance, it includes overload, overvoltage, and short-circuit protections, with a 3-year warranty.
TRACO POWER TRI154815 DC/DC Converter Specifications:
- Power: 15 Watt
- Input Voltage Range: 9-18 VDC, 18-36 VDC, 36-75 VDC (2:1 range)
- Input Current (full load): 10-20 mA (at 12-48 VDC)
- Isolation Voltage: 8000 VDC test, 1000 VAC working
- Isolation Resistance: ≥10 GΩ at 500 VDC
- Isolation Capacitance: ≤80 pF
- Output Power: Regulated, precisely isolated outputs
- Efficiency: Up to 90%
- Operating Temperature: -40°C to +85°C (derated above +65°C)
- Protection: Overload, overvoltage, short circuit
- Transient Immunity: 15 kV/μs
- Dimensions: 50.8 mm x 25.4 mm x 11 mm (2” x 1” x 0.43”)
- Housing Material: UL V-0 rated plastic
- Soldering Profile: Wave soldering at 260°C for 10 seconds max.
- Safety Standards: IEC/EN/UL 62368-1
- Certifications: UL, IEC, EN
Buy the Buy Traco Power TRI 15 Series Part Number TRI154815 Online
Purchase the Traco Power TRI 15 Series TRI154815 online today to experience dependable 15-watt power conversion in demanding environments. This compact DC/DC converter offers reinforced isolation of up to 8000 VDC, ensuring safety and reliability for industrial, transportation, and instrumentation applications. With a wide input voltage range of 9-75 VDC, high efficiency up to 90%, and certifications including IEC/EN/UL 62368-1, this converter guarantees optimal performance. Its robust design includes protections against overload, overvoltage, and short circuits, alongside low no-load power consumption, making it a perfect choice for mission-critical systems requiring consistent and safe power supply.
Order your Traco Power TRI 15 Series TRI154815 today and ensure your industrial projects benefit from reliable, efficient power conversion with reinforced isolation.
Frequently Asked Questions
Where can I buy TRACO POWER TRI154815?
You can click on the BUY or RFQ button to purchase TRI154815 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TRI154815?
You can download the TRI154815 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TRI154815?
TRACO POWER
