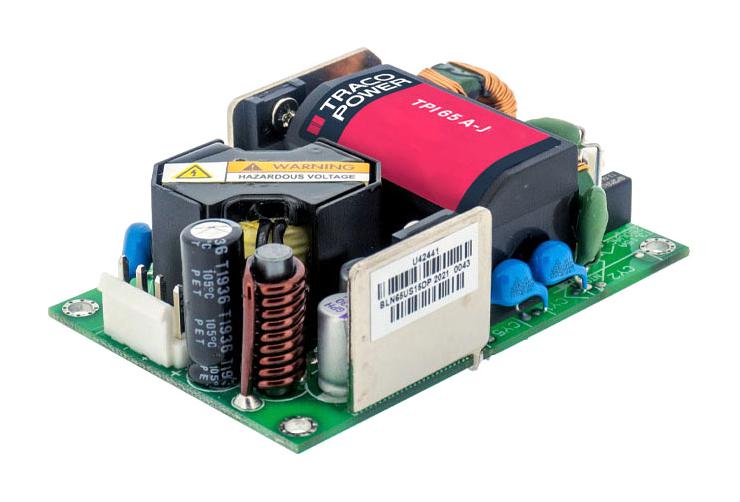

TRACO POWER TPI65105AJP Industrial Power Supply
The TPI 65A-J series from Traco Power offers a reliable 65-watt open frame power supply suitable for industrial automation, testing, and measurement applications. Featuring reinforced 3000 VAC isolation, high efficiency up to 93%, and a peak power function delivering up to 140% for 10 seconds, it ensures robust performance across a wide temperature range from -40°C to +85°C with optional load derating. Compliant with ErP, EMC, and safety standards, it is ideal for space-critical, demanding industrial environments requiring high reliability and thermal management.
TRACO POWER TPI65105AJP Industrial Power Supply Specifications:
- Output Power: 50W to 65W (depending on model), peak power up to 140% for 10 seconds
- Input Voltage: 85-264 VAC, 120-370 VDC, 63 Hz frequency
- Output Voltage: 5V, 12V, 15V, 24V, 36V, 48V, 53V (adjustable ±10%)
- Maximum Output Current: 10A (5V), 5.42A (12V), 4.34A (15V), 2.71A (24V), 1.81A (36V), 1.36A (48V), 1.24A (53V)
- Efficiency: up to 93%
- Operating Temperature: -40°C to +85°C with load derating up to +60°C
- Isolation Voltage: 3000 VAC reinforced
- Protection: Continuous short circuit, overvoltage (126%-140%), automatic recovery
- Safety Standards: EN 62368-1, UL 62368-1, IEC 62368-1, Class I, Class II insulation
- EMC Compliance: EN 55032 class B, FCC Part 15, EN 61000-3-2/3, EN 61000-4 series immunity
- Cooling: Natural convection, altitude up to 5000 m
- Dimensions: Approximately 3 x 2 inches, with screw terminal connections
Buy the Traco Power TPI 65A-J U–Reliable Industrial Power Supply for Automation and Testing
Order the Traco Power TPI 65A-J series today and ensure your industrial devices operate with exceptional reliability. This 65-watt power supply provides high efficiency up to 93%, reinforced 3000 VAC isolation, and peak power capabilities up to 140% for short durations. Its wide operating temperature range of -40°C to +85°C, combined with compact size and excellent thermal management, makes it ideal for demanding automation, test, and measurement setups. Purchase online now for fast delivery and reliable performance.
Buy Traco Power TPI 65A-J now and experience unmatched reliability and robust performance in industrial automation applications.
