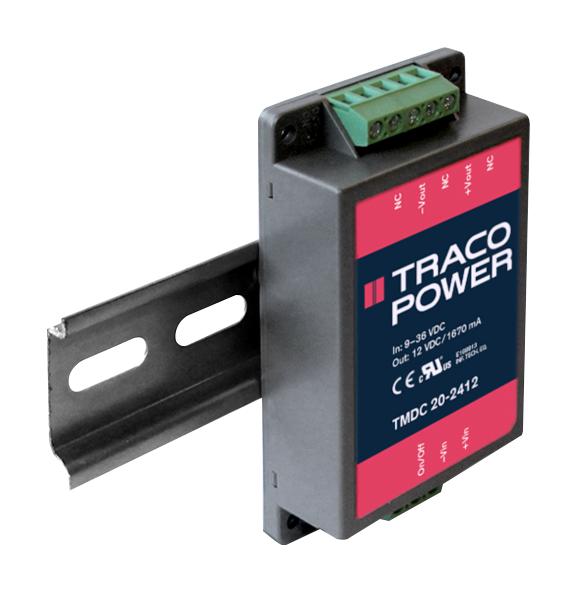

TRACO POWER TMDC202415 DC/DC Converter Module
The TMDC 20 Series is a reliable, encapsulated 20-watt DC/DC converter module designed for industrial applications. It features a high efficiency of up to 91%, wide 4:1 input voltage range, and operates from -40°C to +90°C with thermal derating. The unit includes a remote On/Off, LED indicator for output presence, and meets various EMC and safety standards. Suitable for chassis mounting, these converters offer excellent voltage regulation, low no-load input current, advanced electrical isolation, and thermal stability, making them ideal for demanding industrial and residential environments.
TRACO POWER TMDC202415 DC/DC Converter Module Specifications:
- Output Power: 20 Watts
- Input Voltage Range: 4:1 wide input range (e.g., 24V or 48V nominal)
- Output Voltages: 5.1 VDC, 12 VDC, 24 VDC, 48 VDC
- Maximum Output Current: 4A (5.1 VDC), 420mA (48 VDC)
- Efficiency: Up to 91%
- Operating Temperature: -40°C to +90°C with derating
- Isolation Voltage: 2500 VDC (Input/Output)
- Input Current at No Load: 70mA (24V), 35mA (48V)
- Surge Voltage: 50V (24V models), 100V (48V models)
- Start-up Time: 30ms max
- Ripple & Noise: 100-200 mVpk-pk depending on voltage
- Remote On/Off: 3.5-12V to -Vin or open (On), 0-1.2V or short (Off)
- Switching Frequency: 285 kHz typical
- Case Material: UL 94V-0 rated plastic
- Dimensions: 54mm x 23.3mm x 11.2mm
- Weight: 107g
- Safety & EMI: UL/cUL 60950-1, EN 60950-1, Conducted & Radiated immunity
Buy the Traco Power TMDC202415 – Reliable DC-DC Converter for Industrial Applications
Order the Traco Power TMDC202415 online today to ensure a dependable power conversion solution for your industrial or residential projects. This 20W high-efficiency, encapsulated DC/DC converter features a wide input voltage range, low ripple, and advanced safety certifications. Its compact design, remote On/Off, and excellent temperature operation make it ideal for demanding environments. Purchase now to improve your system's reliability with a proven, high-quality converter that guarantees consistent performance and simple integration for various power needs.
Buy Traco Power TMDC202415 now and experience unmatched reliability and performance in your power management solutions.
