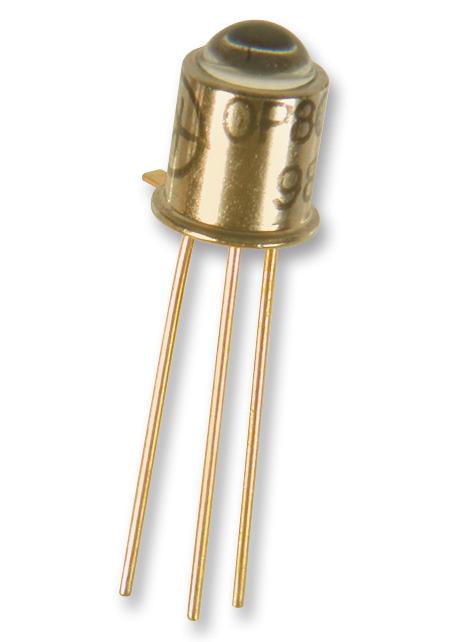

TT Electronics - Optek Technology OP805SL NPN Silicon Phototransistor
The OP805SL is an NPN silicon phototransistor equipped with high power dissipation capabilities and designed for operation in harsh environments. Its narrow receiving angle ensures excellent on-axis coupling, and the base lead is bonded for conventional transistor biasing. The device is spectrally and mechanically matched to the OP130 and OP230 series of integrated LED emitters. It is available in various sensitivity ranges and offers an enhanced temperature range, making it suitable for industrial applications. Due to high market demand, lead times may be extended, and delivery dates are subject to fluctuation. This product is exempt from discounts.
TT Electronics - Optek Technology OP805SL NPN Silicon Phototransistor Specifications:
- Package Type: TO-18 hermetically sealed
- Maximum Storage Temperature: -65°C to +150°C
- Maximum Operating Temperature: -65°C to +125°C
- Collector-Base Voltage: 30V (OP800SL only)
- Collector-Emitter Voltage: 30V
- Emitter-Base Voltage: 5V (OP800SL only)
- Emitter-Collector Voltage: 5V
- Continuous Collector Current: 50 mA
- Power Dissipation: 250 mW
- Lead Soldering Temperature: 260°C for 5 seconds
- Sensitivity Range: 1–5 levels depending on variant
- Testing Light Source: 2870°K
- Spectral Matching: To OP130 and OP230 series LEDs
- Response: Designed for high power and hostile environments
- Application Environment: Space-limited and hostile settings
- Features: Hermetically sealed, spectral and mechanical match, various sensitivity, enhanced temperature tolerance
Buy the OPTEK Series OP800SL: NPN Silicon Phototransistor
Order the OPTEK OP805SL online today to access premium NPN silicon phototransistors designed for demanding environments. Featuring high power dissipation, precise spectral matching to LED emitters, and a hermetically sealed TO-18 package, this device guarantees durable performance in industrial and space-limited applications. Its narrow receiving angle and spectral properties ensure efficient on-axis coupling and reliable operation. Purchase now to ensure fast delivery, competitive pricing, and trusted quality backed by specifications tailored for harsh environments and high power dissipation needs.
Buy OPTEK OP805SL now and experience unmatched reliability and performance with high power dissipation and excellent environmental resilience.
