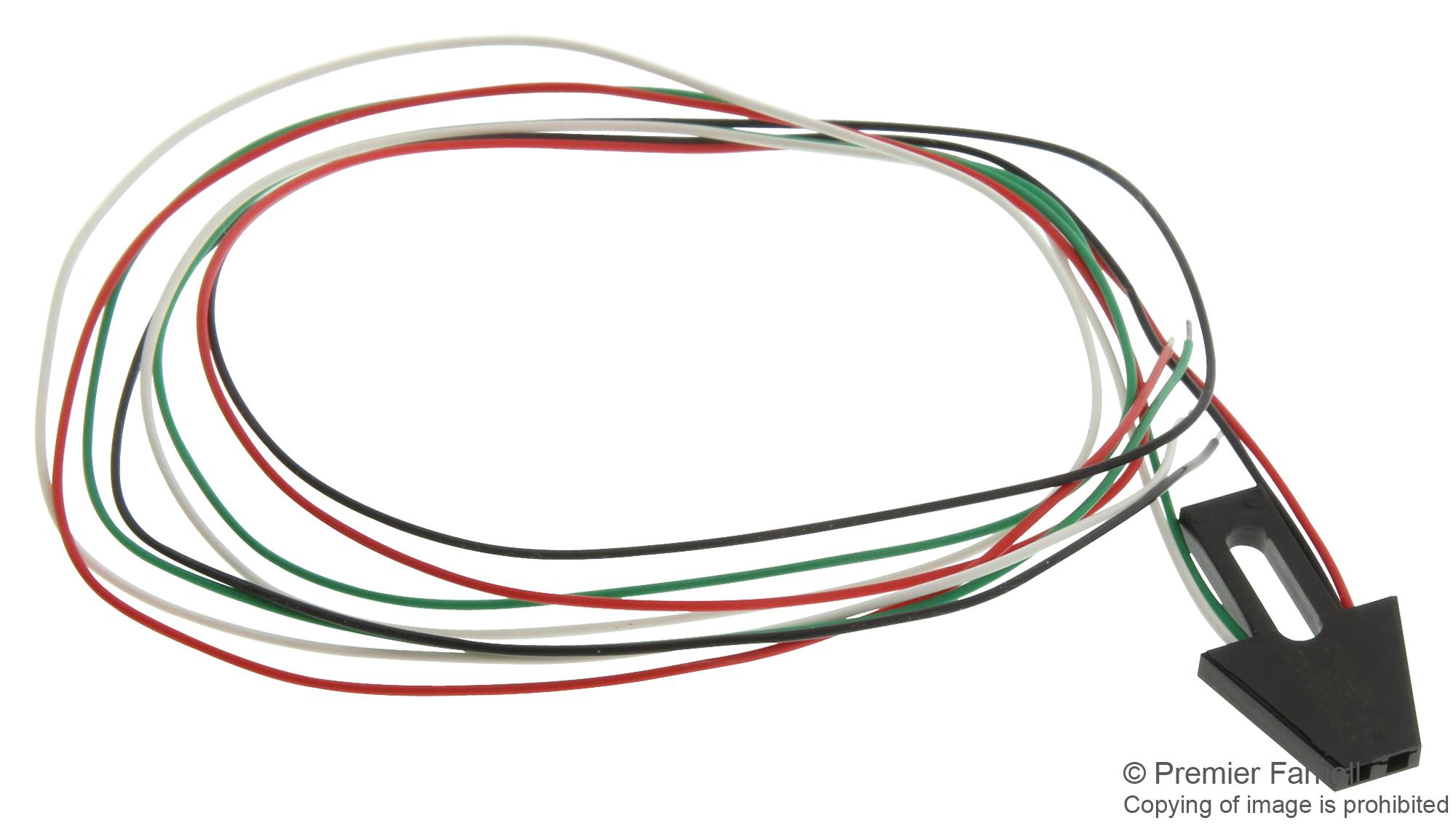

TT Electronics - Optek Technology OPB701ALZ Reflective Object Sensor
The OPB701ALZ is a reflective object sensor with an 890nm infrared LED and an NPN silicon photodarlington detector mounted side-by-side in a compact black plastic housing. It features UL-approved 26 AWG PTFE-insulated wires, 18 inches long, designed for easy stacking and reliable performance in automation, sensing, and safety applications. The low-profile design simplifies integration into various systems, offering precise detection for assembly line automation, machine safety, and process control environments. Its robust construction ensures durability and consistent operation in demanding industrial settings.
TT Electronics - Optek Technology OPB701ALZ Reflective Object Sensor Specifications:
- Wavelength: 890 nm
- LED Type: Infrared
- Detector Type: NPN silicon photodarlington
- Housing Material: Black plastic
- Wire Material: UL approved #26 AWG PTFE-insulated
- Wire Lengths: 18 inches (457 mm)
- Maximum Storage Temperature: -40°C to +125°C
- Operating Temperature Range: -40°C to +100°C
- Lead Soldering Temperature: 260°C
- Collector-Emitter Voltage: 24V maximum
- Emitter-Collector Voltage: 5V maximum
- Collector Current (Phototransistor): 250 mA
- Collector Current (Photodarlington): 43 mA
- Power Dissipation (Phototransistor): 80 mW
- Power Dissipation (Photodarlington): 50 mW
Buy the OPTEK OPB701ALZ – Reliable Reflective Object Sensor for Industrial Applications
Order the OPTEK OPB701ALZ online today to enhance automation systems with a compact, reliable reflective object sensor. Featuring an 890nm IR LED and a photodarlington detector, it delivers accurate detection in industrial environments. Its low-profile, stackable design allows for seamless integration into machinery, safety systems, and process automation. Equipped with UL-approved, 18-inch PTFE-insulated wires, it offers durability and easy installation. Trust OPTEK’s quality for long-term operational stability and improved safety in your production line or automation project.
Get OPTEK OPB701ALZ today—built for precision and long-lasting durability in automation and safety solutions.
Frequently Asked Questions
Where can I buy TT Electronics - Optek Technology OPB701ALZ?
You can click on the BUY or RFQ button to purchase OPB701ALZ from an authorized TT Electronics - Optek Technology distributor.
How do I troubleshoot issues or seek technical support for part OPB701ALZ?
You can download the OPB701ALZ datasheet or visit the TT Electronics - Optek Technology website for support.
Who is the manufacturer of OPB701ALZ?
TT Electronics - Optek Technology
