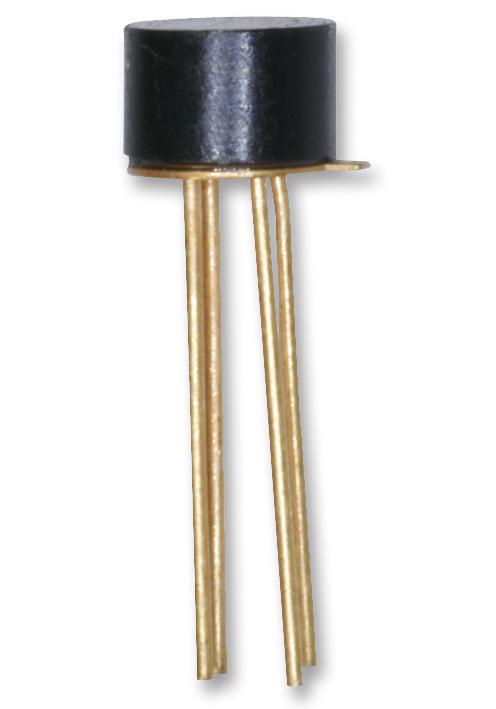

TT Electronics - Optek Technology OPB710 Reflective Object Sensor
Reflective object sensors OPB710, OPB710F, OPB730, and OPB730F feature infrared emission and phototransistor or photodarlington detection, mounted on standard TO-72 headers with encapsulating epoxy and optional filtering to reduce ambient light effects. Suitable for non-contact surface sensing, machine automation, safety applications, and end-of-travel detection, these sensors operate within specific temperature ranges, with defined electrical characteristics. The sensors use gallium arsenide IR LEDs and silicon photoelements, offering reliable, diffuse sensing for industrial automation and safety systems with compact, robust packages.
TT Electronics - Optek Technology OPB710 Reflective Object Sensor Specifications:
- Storage Temperature Range: -20°C to +85°C
- Operating Temperature Range: 0°C to +70°C
- Lead Soldering Temperature: 260°C for 5 sec
- Input Diode Forward Voltage: 1.5 V max
- Reverse DC Voltage: 3 V
- Forward DC Current: 50 mA
- Power Dissipation: 75 mW (diode), 150 mW (sensor)
- Collector-Emitter Voltage (OPB710, OPB710F): 30 V
- Collector-Emitter Voltage (OPB730, OPB730F): 15 V
- Collector Current: 25 mA
- Collector-Emitter Breakdown Voltage: 30 V (OPB710 series), 15 V (OPB730 series)
- Collector Dark Current: 100 nA (OPB710), 250 nA (OPB730)
- Ambient Light Crosstalk Current: 100 nA (OPB710), 500 nA (OPB730)
- Object Sensing Distance: Up to 250 inches on diffuse surfaces
- Peak Wavelength: 935 nm (OPB710 series), 1270 nm (OPB730 series)
Buy the Electronics Series Reflective Object Sensor: OPB710
Order the Reflective Object Sensor online today and benefit from advanced diffuse surface detection, stable operation in various lighting conditions, and a compact, easy-to-mount package that ensures reliable industrial automation and safety system integration. Designed for diverse applications such as end-of-travel sensing, machine safety, and non-contact surface detection, this sensor provides precise IR-based measurement, long-distance detection up to 250 inches, and filtering options to minimize ambient light interference. Secure fast delivery and expert support for your automation needs.
Buy OPTEK Electronics OPB710 now and experience unmatched reliability and performance with its diffuse sensing capability and robust design.
Frequently Asked Questions
Where can I buy TT Electronics - Optek Technology OPB710?
You can click on the BUY or RFQ button to purchase OPB710 from an authorized TT Electronics - Optek Technology distributor.
How do I troubleshoot issues or seek technical support for part OPB710?
You can download the OPB710 datasheet or visit the TT Electronics - Optek Technology website for support.
Who is the manufacturer of OPB710?
TT Electronics - Optek Technology
