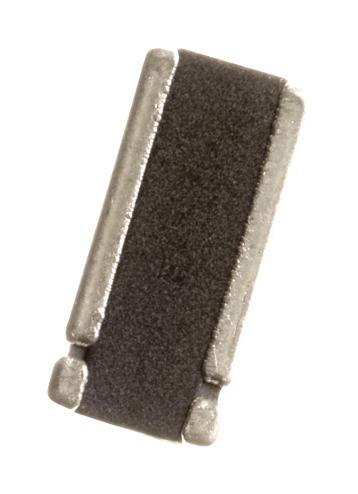

TTElectronics---Welwyn LRMAN1225R05FT1 Low Resistance Resistor
The LRMAN1225 series resistor is a high-precision, low resistance alloy resistor suitable for current sensing in power electronics. It features a resistance range of 0.5mQ to 300mQ, high-temperature operation up to 170°C, and is RoHS compliant. Designed with copper electrodes and nickel plating, it offers excellent stability, low thermal EMF, and resistance to industrial solvents. Ideal for compact, high-power applications, it ensures reliable performance under cyclic load and environmental stresses, making it suitable for demanding industrial and electronic systems.
TTElectronics---Welwyn LRMAN1225R05FT1 Low Resistance Resistor Specifications:
- Resistance range: 0.5mQ to 300mQ
- Size: 1225
- Power rating @70°C: 3W
- Overload rating (6s): 15W
- Resistance tolerance: ±1%
- TCR (25 to 125°C): ±100 ppm/°C
- Maximum operating temperature: 170°C
- Insulation resistance: >100MΩ
- Material: Copper electrode with Ni plating, alloy resistor plate
- Size dimensions: Length 3.2mm, Width 2.5mm, Thickness 0.2mm
- RoHS compliant, halogen free, suitable for wave and IR reflow soldering
- Environmental conditions: -55°C to 170°C, resistance to industrial solvents
Buy the TT Electronics LRMAN1225 U+2013 Reliable Low Resistance Resistors for Industrial Applications
Purchase the TT Electronics LRMAN1225 resistor online now to ensure your power electronics and industrial systems operate with high accuracy and stability. This low resistance alloy resistor is engineered for precision current sensing, capable of enduring high temperatures up to 170°C, and complies with RoHS standards. Its compact size makes it ideal for space-constrained applications, providing excellent resistance to solvents and environmental stresses. With quick delivery and trusted quality, improve your project's performance by ordering online today.
Order your TT Electronics LRMAN1225 series low resistance resistor today and enhance the reliability of your power electronic projects with high stability and environmental resistance.
Frequently Asked Questions
Where can I buy TTElectronics---Welwyn LRMAN1225R05FT1?
You can click on the BUY or RFQ button to purchase LRMAN1225R05FT1 from an authorized TTElectronics---Welwyn distributor.
How do I troubleshoot issues or seek technical support for part LRMAN1225R05FT1?
You can download the LRMAN1225R05FT1 datasheet or visit the TTElectronics---Welwyn website for support.
Who is the manufacturer of LRMAN1225R05FT1?
TTElectronics---Welwyn
