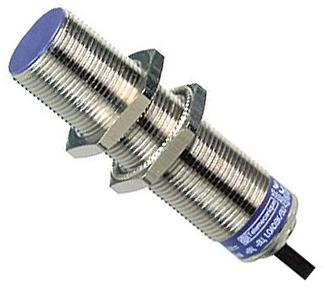

Telemecanique Sensors XS618B1PAL2 Inductive Proximity Sensor
The XS618B1PAL2 from Schneider Electric is a rugged inductive proximity sensor designed for general-purpose industrial applications. This cylindrical, flush-mountable sensor features an M18 body and a sensing range of up to 8 mm. It employs a durable nickel-plated brass enclosure and metal sensing face, with a switching capacity of up to 200 mA. The device operates on 12 to 48 V DC, equipped with reverse polarity protection, overload, and short circuit safeguards. Its IP69K rating ensures suitability in wet, washdown, and harsh environments, making it ideal for automation, robotics, and instrumentation applications.
Telemecanique Sensors XS618B1PAL2 Inductive Proximity Sensor Specifications:
- Sensor type: Inductive proximity sensor
- Series: OsiSense XS
- Body material: Nickel plated brass
- Size: 62 mm length
- Detection face: Frontal, metal sensing face
- Sensing range: > 0.16 to 0.31 inches (4 to 8 mm)
- Output signal: Discrete, PNP NO, 3-wire DC
- Rated supply voltage: 12 to 48 V DC, reverse polarity protected
- Switching capacity: <= 200 mA with overload protection
- IP degree of protection: IP69K, IP68, IEC 60529 and DIN 40050 compliant
- Environmental durability: Resistant to vibration (25 gn), shock (50 gn), suitable for washdown
- Cable length: 6.56 ft (2 m), cable type: PVC Insulation
- Operating temperature: -25°C to 70°C
- Thread type: M18 x 1
- Enclosure material: Nickel plated brass
- Dimensions: Length 62 mm, threaded length 52 mm
- Response time: ≤ 0.3 ms, max delay first up 40 ms
- CE marking: Yes
- Certifications: UL, CSA, E2
Buy the Schneider Series XS inductive proximity sensor: XS618B1PAL2
Enhance your industrial automation with the Schneider XS618B1PAL2 inductive proximity sensor. Featuring a robust nickel-plated brass body, IP69K protection, and an 8 mm sensing range, this cylindrical sensor is perfect for washdown environments. It operates on 12 to 48 V DC with reverse polarity and overload protection. Its compact design, fast response time, and reliable output make it suitable for robotics, instrumentation, and manufacturing automation. Purchase online today for dependable, high-performance sensing in your projects.
Order your Schneider Series XS XS618B1PAL2 today and upgrade your automation systems with a reliable, IP69K-rated inductive proximity sensor for harsh environments.
Frequently Asked Questions
Where can I buy Telemecanique Sensors XS618B1PAL2?
You can click on the BUY or RFQ button to purchase XS618B1PAL2 from an authorized Telemecanique Sensors distributor.
How do I troubleshoot issues or seek technical support for part XS618B1PAL2?
You can download the XS618B1PAL2 datasheet or visit the Telemecanique Sensors website for support.
Who is the manufacturer of XS618B1PAL2?
Telemecanique Sensors
