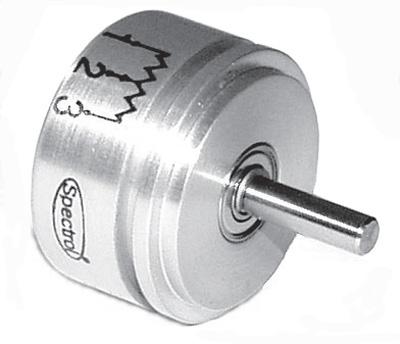

Vishay 15711103 Precision Industrial Potentiometer
The Vishay Spectrol 157-11103 is a high-quality, precision industrial potentiometer designed for demanding applications. Its robust construction includes a rugged one-piece metal housing, ensuring durability and long-term reliability. The potentiometer offers excellent linearity, with options for special linearity requirements down to ±0.25%. It operates effectively across a wide temperature range (-55°C to +125°C) and boasts a long rotational life, with bushing mount versions rated for 5 million shaft revolutions and servo mount versions for 10 million. Common applications include industrial equipment, automation systems, and other environments requiring precise and reliable position sensing and control.
Vishay 15711103 Precision Industrial Potentiometer Specifications:
- Sensor Type: Rotational, conductive plastic
- Output Type: Output by turrets
- Market Appliance: Industrial
- Dimensions: 7/8" (22.2 mm)
- Resistance: 1 kΩ to 100 kΩ
- Resistance Tolerance: ± 20 % / ± 10 %
- Linearity: ± 2.0 % / ± 0.25 %
- Temperature Coefficient of Resistance: ± 600 ppm/°C
- Power Rating: 1.0 W at 40 °C ambient / 0 W at 125 °C
- Electrical Angle: 340° ± 4°
- End Voltage: 0.5 % maximum
- Dielectric Withstanding: 1000 VRMS, 60 Hz
- Insulation Resistance: 100 MΩ minimum, 500 VDC
- Output Smoothness: 0.1 %
- Weight: 0.5 oz. maximum (14g)
- Rotation: 360° (continuous)
- Mount Bearing Type (Bushing): Sleeve bearing
- Mount Bearing Type (Servo): Ball bearing
- Operating Torque Starting: 0.30 oz. - in (21.6 g - cm)
- Operating Torque Running: 0.25 oz. - in (18 g - cm)
- Mechanical Tolerance (in/mm) Shaft Runout (TIR): 0.002" (0.05 mm)
- Mechanical Tolerance (in/mm) Pilot Dia Runout (TIR): 0.005" (0.13 mm)
- Mechanical Tolerance (in/mm) Lateral Runout (TIR): 0.006" (0.15 mm)
- Mechanical Tolerance (in/mm) Shaft End Play: 0.003" (0.08 mm)
- Mechanical Tolerance (in/mm) Shaft Radial Play: 0.002" (0.05 mm)
- Housing/Bushing Material: Aluminum, anodized
- Rear Lid Material: Ceramic
- Shaft Material: Stainless steel
- Terminal Material: Solderable
- Bushing Mount Hardware: Lockwasher, internal tooth steel, nickel plated
- Panel Nut Material: Brass, nickel plated
- Operating Temperature: -55 °C to +125 °C
- Rotational Life (Bushing): 5 million shaft revolutions
- Rotational Life (Servo): 10 million shaft revolutions
- Moisture Resistance: Yes
- Vibration Resistance: 15 g 10 to 2000 Hz
- Shock Resistance: 50 g
