Vishay LTO030F50R00FTE3 Power Resistor
The LTO 30 power resistor from Vishay Sfernice is a compact, thick film technology device rated at 30 W at 25°C. It features a broad resistance range from 0.010 Ω to 550 kΩ, non-inductive design, and durable ceramic mounting for heat sink attachment. Designed for industrial applications, it withstands temperatures from -55°C to +155°C, offers reliable dielectric strength and environmental resistance, and is suitable for power dissipation onto heatsinks with optimized thermal resistance. Encased in a TO-220 package, it ensures easy mounting and superior thermal management in high-power circuits.
Vishay LTO030F50R00FTE3 Power Resistor Specifications:
- Power Rating: 30 W at + 25 °C (case temperature)
- Resistance Range: 0.010 Ω to 550 kΩ
- Package: TO-220
- Resistive Element: Thick film
- Substrate: Alumina
- Connections: Tinned copper
- Weight: Max 2 g
- Temperature Range: -55°C to +155°C
- Dielectric Strength: 1500 V AC for 1 minute
- Climatic Category: 55/155/56
- Thermal Resistance (Resistor to Heatsink): Calculated example Rth = 4.2°C/W
- Inductance: <0.1 μH
- Insulation Resistance: 10 MΩ min
- Mechanical Protection: Molded, RoHS compliant
- Environmental Resistance: Meets various MIL standards, humidity, temperature cycles, shock, vibration

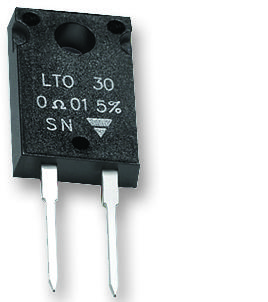

Buy the Vishay LTO30 U–Reliable Power Resistor for Industrial Applications
Purchase the Vishay LTO power resistor series online today and experience reliable performance with 30 W power rating, broad resistance options, and superior thermal stability. This durable thick film resistor features easy ceramic mounting in a compact TO-220 package, ideal for industrial applications requiring high power dissipation and heat management. Easily mounted onto heatsinks with optimal thermal resistance and equipped for harsh environments, it guarantees longevity and consistent performance. Order now to upgrade your power circuitry with this high-quality industrial resistor with quick online delivery.
Order your Vishay SeriesLTO30 resistor today and ensure dependable high-power performance in your industrial circuits.
Frequently Asked Questions
Where can I buy Vishay LTO030F50R00FTE3?
You can click on the BUY or RFQ button to purchase LTO030F50R00FTE3 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part LTO030F50R00FTE3?
You can download the LTO030F50R00FTE3 datasheet or visit the Vishay website for support.
Who is the manufacturer of LTO030F50R00FTE3?
Vishay
