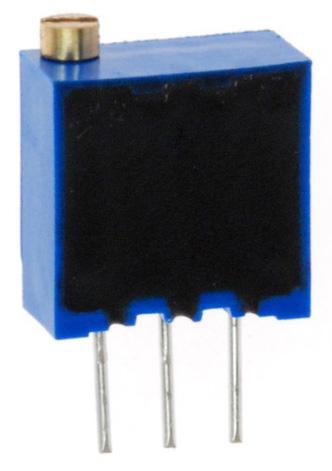

Vishay T93YA203KT20 industrial trimmer potentiometer
The T93YA203KT20 is a 20kΩ, 500mW, 22-turn industrial-grade trimmer potentiometer designed for through-hole mounting on PC boards. Featuring an IP67 sealed, fully protected body, it ensures durability against dust and water. The device uses a cermet resistive element for excellent stability, with a resistance tolerance of ±10% and a temperature coefficient of ±100ppm/°C. Its clutch action end stop torque enhances precision, and operating over -55°C to 125°C makes it suitable for demanding industrial applications. The compact 3/8-inch square YA-style trimmer offers reliable operation in various environments.
Vishay T93YA203KT20 industrial trimmer potentiometer Specifications:
- Resistance Range: 10 Q to 2.2 MQ
- Power Rating: 0.5 W at 70°C
- Temperature Range: -55°C to 125°C
- Operating Torque: Max 15 Ncm
- Mechanical Travel: 23 turns ±5
- Sealing: Fully sealed IP67
- Terminal Material: Pure Sn
- Resistance Tolerance: ±10% (±5% on request)
- Temperature Coefficient: ±100 ppm/°C
- Dielectric Strength: 4000V RMS
- End Resistance: Typical 10 Ω
- Insulation Resistance: ≥10 MΩ at 500 V DC
- Vibration Resistance: 10 g for 6 hours
- Shock Resistance: 3 shocks in 3 directions
- Wiper Travel: Approx. 50%
- Net Weight: Approx. 0.82 g
Buy the Vishay T93YA203KT20 – Reliable Industrial Trimmer for Industrial Applications
Enhance your industrial projects with the Vishay T93YA203KT20, a precision 20kΩ IP67 sealed trimmer designed for demanding environments. This 22-turn cermet potentiometer offers excellent stability, high durability, and reliable performance over a temperature range from -55°C to 125°C. Its compact 3/8-inch square YA-style construction features pure tin terminals for easy PCB mounting. Ideal for fine-tuning voltage and resistance in industrial control, automation, and instrumentation applications, ensuring long-lasting, accurate operation in harsh conditions.
Order your Vishay T93YA203KT20 precision trimmer today and enhance your industrial control systems with dependable, high-quality components.
Frequently Asked Questions
Where can I buy Vishay T93YA203KT20?
You can click on the BUY or RFQ button to purchase T93YA203KT20 from an authorized Vishay distributor.
How do I troubleshoot issues or seek technical support for part T93YA203KT20?
You can download the T93YA203KT20 datasheet or visit the Vishay website for support.
Who is the manufacturer of T93YA203KT20?
Vishay
