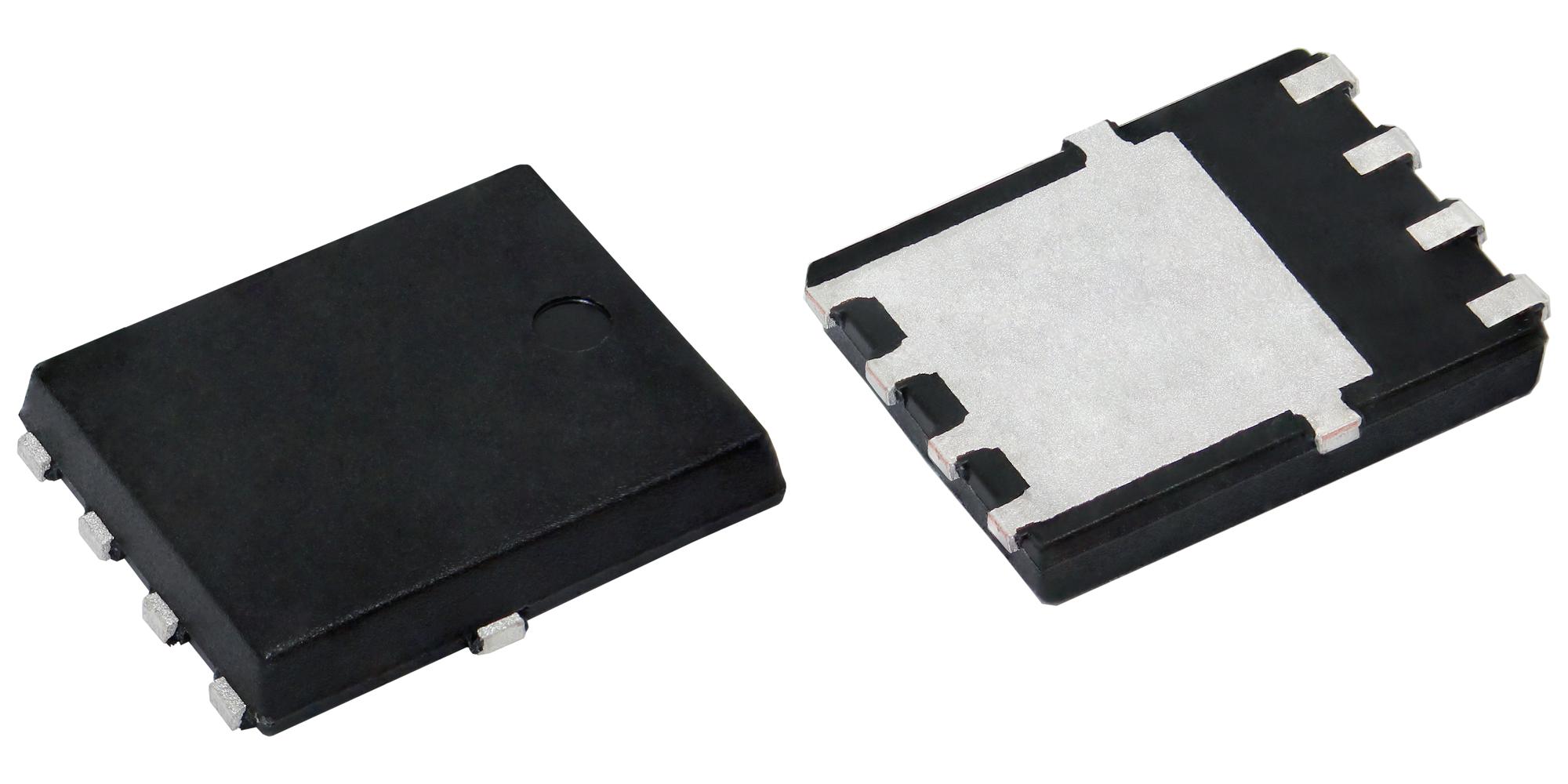

Vishay V20KM120HM3H High Current Schottky Rectifier
The V20KM120HM3H is a high current-density surface-mount Trench MOS Barrier Schottky rectifier designed for efficient power rectification. Featuring ultra-low forward voltage drop of 0.45 V at 5A and a maximum repetitive peak reverse voltage of 120 V, it offers high efficiency and low power losses. The flatPAK 5x6 package ensures robust mechanical stability, with matte tin-plated leads for easy soldering. It is suitable for low voltage, high-frequency applications such as DC/DC converters, freewheeling diodes, and polarity protection, and is AEC-Q101 qualified for automotive reliability.
Vishay V20KM120HM3H High Current Schottky Rectifier Specifications:
- Maximum Repetitive Peak Reverse Voltage: 120V
- Maximum DC Forward Current: 20A
- Peak Forward Surge Current: 220A (8.3 ms)
- Operating Junction Temperature: -40°C to +165°C
- Storage Temperature Range: -55°C to +165°C
- Thermal Resistance Junction-to-Ambient: 2.5°C/W (typ.), 3.5°C/W (max.)
- Forward Voltage at 5A: 0.45V (typ.), 0.54V (max.) at 25°C
- Reverse Current at 120V, 25°C: 0.05mA, at 125°C: 6mA
- Junction Capacitance: 1920 pF at 4.0V, 1 MHz
- Case: FlatPAK 5 x 6, Meets UL 94 V-0 flammability, halogen-free, RoHS-compliant
- Terminal Finish: Matte tin-plated, solderable per J-STD-002
- Operating temperature: -40°C to +165°C
