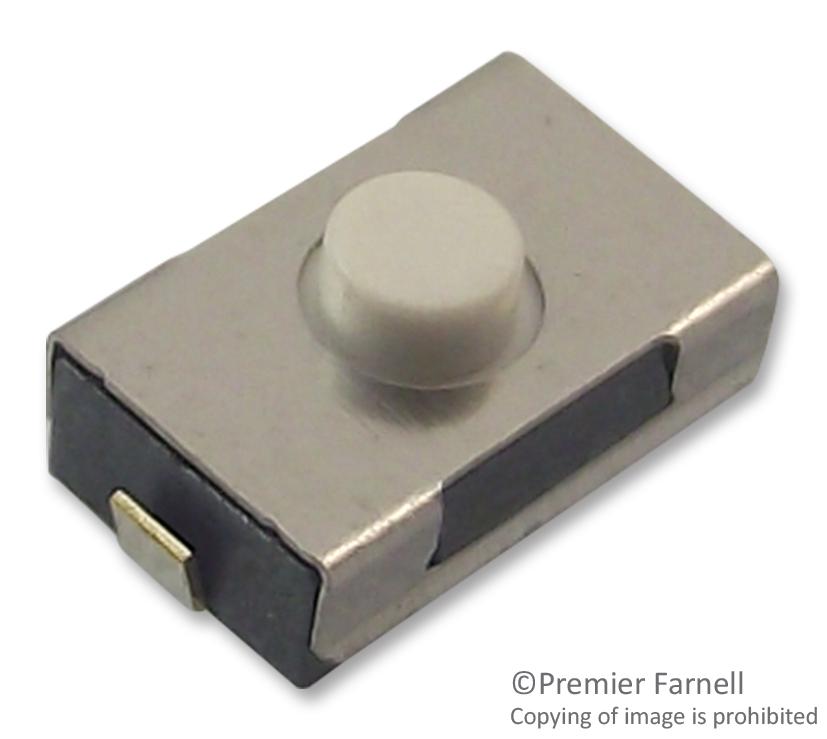

WURTH ELEKTRONIK 434113025826 Tactile Switch
This is a tactile switch designed for general electronic applications, featuring a compact size of 6.0 x 3.8 mm. It operates at 50mA, 12VDC, with a contact resistance of max 100mΩ and insulation resistance of at least 100MΩ at 50VDC. The switch has a dielectric strength of 250VAC for 1 minute, a stroke of 0.25 ± 0.1 mm, and a bounce time of 10ms max. Constructed with a stainless steel cover, black or white LCP frame, and silver-plated contacts, it supports SMD reflow and hand soldering methods. Suitable for safety-critical electronics, it complies with RoHS and Reach standards, with a lifecycle of up to 50,000 cycles.
WURTH ELEKTRONIK 434113025826 Tactile Switch Specifications:
- Rating: 50mA, 12VDC
- Contact Resistance: max 100mΩ
- Insulation Resistance: min 100MΩ at 50VDC
- Dielectric Strength: 250VAC for 1 minute
- Stroke: 0.25 ± 0.1 mm
- Bounce: max 10ms
- Material Cover: Stainless Steel
- Material Frame: LCP UL 94V-0, Black or White
- Contact Material: Silver-plated stainless steel
- Terminal: Copper alloy with silver plating
- Soldering: Reflow or hand soldering (<350°C for 3 sec)
- Environmental Standards: RoHS, Reach
- Life Cycle: Up to 50,000 cycles
- Package: Tape & Reel
Buy the Buy Wurth Elektronik Tactile Switch Part Number 434113025826 Online
Order the Wurth Elektronik tactile switch online today for your electronic projects demanding high safety and reliability. Featuring a compact size of 6.0 x 3.8 mm, it supports SMD reflow and hand soldering, making it ideal for precision control applications. With a lifecycle of up to 50,000 cycles, it ensures long-lasting performance. Its stainless steel contacts, RoHS compliance, and exceptional dielectric and insulation resistance make it perfect for safety-critical environments like aerospace, medical, and industrial automation. Secure your supply chain with this durable, reliable switch now.
Get Wurth Elektronik 434113025826 today—built for high reliability and safety in electronic control systems.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 434113025826?
You can click on the BUY or RFQ button to purchase 434113025826 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 434113025826?
You can download the 434113025826 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 434113025826?
WURTH ELEKTRONIK
