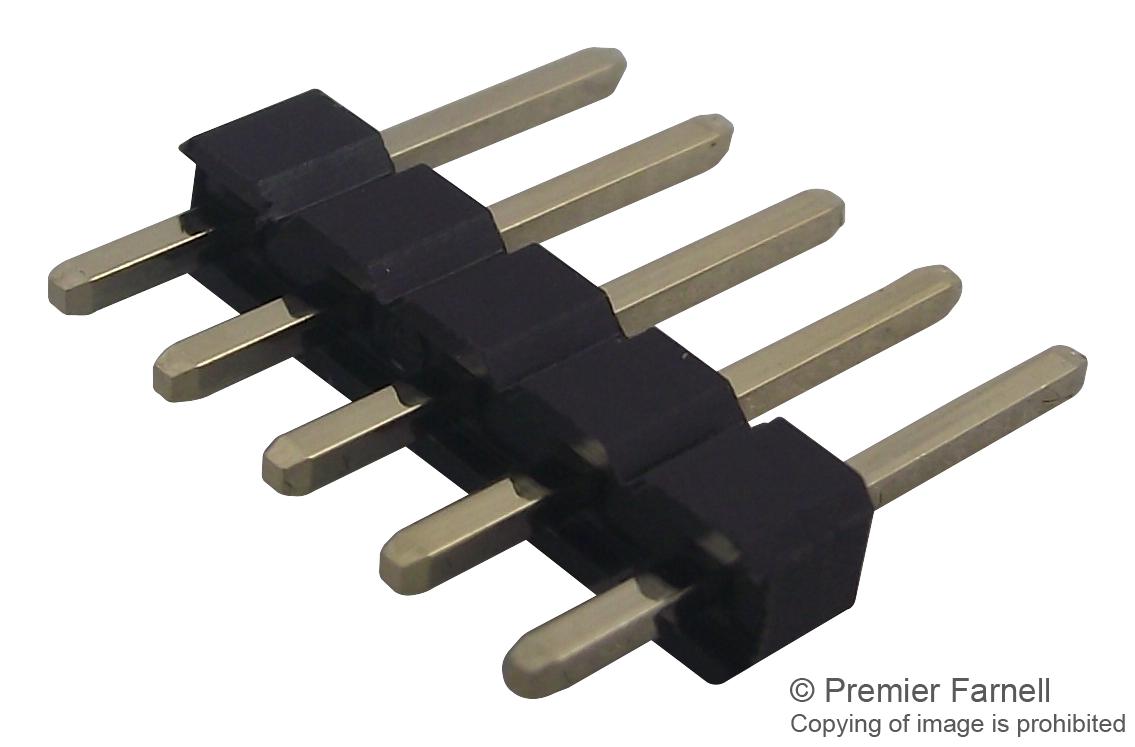

WURTH ELEKTRONIK 61300511121 Pin Header
The 61300511121 is a 5-position, single-row, 2.54mm pitch pin header with a PA6T insulator, gold-plated copper alloy contacts, suitable for general electronic equipment. It features UL94V-0 flammability, stamped contacts, and meets Quality Class 3 CECC standards. With a rated current of 3A, maximum working voltage of 250VAC, and insulation resistance above 1000 Megaohms, it ensures reliable electrical connection. Compatible with JEDEC lead-free wave soldering, this device is ideal for industrial applications requiring durable, high-quality connectors.
WURTH ELEKTRONIK 61300511121 Pin Header Specifications:
- Pin count: 5
- Pitch: 2.54 mm
- Material: PA6T insulator
- Contact Material: Copper Alloy
- Contact Plating: Gold
- Mounting Type: Vertical, through-hole
- Rated Current: 3 A
- Maximum Working Voltage: 250 VAC
- Insulation Resistance: > 1000 Megaohms
- Contact Resistance: Up to 20 milliohms
- Flammability Rating: UL94V-0
- Conformance: CECC 75 301-802 Quality Class 3
- Soldering Process: JEDEC lead-free wave soldering compatibility
Buy the Buy WURTH Pin Header Part Number 61300511121 Online
Purchase the WURTH pin header with 5 positions and a 2.54mm pitch online today. Designed for durability, it features gold-plated contacts, UL94V-0 insulator, rated 3A and 250VAC. Ideal for industrial projects, its high insulation resistance and compatibility with lead-free soldering processes ensure optimal performance. Enhance your electronic assemblies with this high-quality connector, guaranteed to provide secure, reliable connections for demanding applications. Order now for quick delivery and exceptional quality.
Buy WURTH 61300511121 now and experience unmatched reliability and performance for industrial electronic connections.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 61300511121?
You can click on the BUY or RFQ button to purchase 61300511121 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 61300511121?
You can download the 61300511121 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 61300511121?
WURTH ELEKTRONIK
