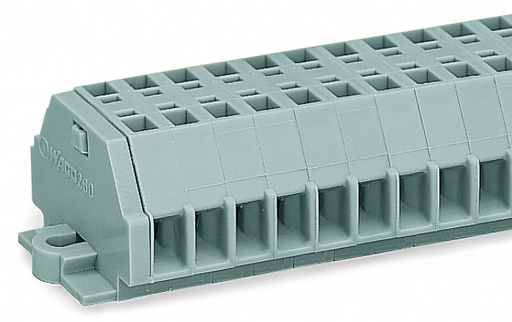

WAGO 260104 4-pole Terminal Strip
The WAGO 260-104 terminal strip offers a reliable and efficient solution for connecting multiple conductors in industrial applications. Featuring WAGO's innovative CAGE CLAMP® connection technology, it ensures secure and vibration-resistant connections. Designed with a horizontal layout and side-entry wiring, this 4-pole terminal strip is ideal for control cabinets, machinery, and automation systems. Its robust construction and compliance with industry standards guarantee long-lasting performance and safety.
WAGO 260104 4-pole Terminal Strip Specifications:
- Rated voltage (III / 3): 400 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 18 A
- Connection technology: CAGE CLAMP®
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
- Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- No. of poles: 4
- Total number of connection points: 8
- Total number of potentials: 4
- Number of levels: 1
- Type of wiring: Side-entry wiring
- Width: 34.5 mm / 1.358 inch
- Height from the surface: 17 mm / 0.669 inch
- Depth: 25 mm / 0.984 inch
- Module width: 5 mm / 0.197 inch
- Design: horizontal
- Mounting type: Mounting flange
- Marking level: Side marking
- Color: gray
- Fire load: 0.155 MJ
- Weight: 7.3 g
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918598798
- Customs Tariff No.: 85369010000
Buy the 260-104 WAGO 4-pole Terminal Strip | myMectronic
Purchase the WAGO 260-104 terminal strip securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 260104?
You can click on the BUY or RFQ button to purchase 260104 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 260104?
You can download the 260104 datasheet or visit the WAGO website for support.
Who is the manufacturer of 260104?
WAGO
