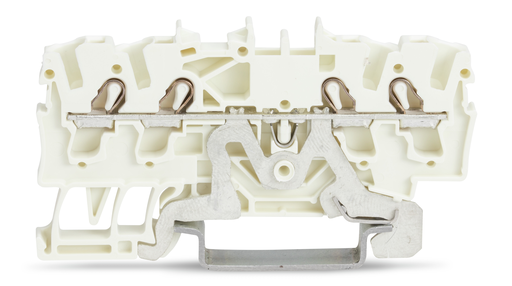

WAGO 20021408 4-conductor Shield Terminal Block
The WAGO 2002-1408 is a robust and reliable 4-conductor shield terminal block designed for use in industrial control and power distribution systems. It is mounted on DIN rails (35 x 15 and 35 x 7.5) and utilizes WAGO’s Push-in CAGE CLAMP® connection technology, ensuring a secure and vibration-resistant connection. This terminal block is ideal for applications requiring reliable grounding and shielding of conductors, contributing to overall system safety and performance. It supports a wide range of conductor sizes and materials, making it versatile for various wiring configurations.
WAGO 20021408 4-conductor Shield Terminal Block Specifications:
- Actuation type: Push-in
- Connectable conductor materials: Copper
- Nominal cross section: 2.5 mm²
- Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Solid conductor, push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
- Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Fine-stranded conductor with ferrule with plastic collar: 1 … 2.5 mm² / 18 … 12 AWG
- Fine-stranded conductor with ferrule, push-in termination, from: 1 … 2.5 mm² / 18 … 12 AWG
- Strip length: 10 … 12 mm / 0.39 … 0.47 inch
- Total number of connection points: 4
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross section can also be inserted via push-in termination.
- Number of jumper slots: 2
- Width: 5.2 mm / 0.205 inch
- Height from upper-edge of DIN-35 rail: 32.9 mm / 1.295 inch
- Depth: 69.9 mm / 2.752 inch
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Center/side marking
- Color: white
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.118 MJ
- Weight: 9.3 g
- Product Group: 22 (TOPJOB S)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454719494
- Customs Tariff No.: 85369010000
Buy the 2002-1408 WAGO 4-conductor Shield Terminal Block | myMectronic
Purchase the WAGO 2002-1408 terminal block securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 20021408?
You can click on the BUY or RFQ button to purchase 20021408 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 20021408?
You can download the 20021408 datasheet or visit the WAGO website for support.
Who is the manufacturer of 20021408?
WAGO
