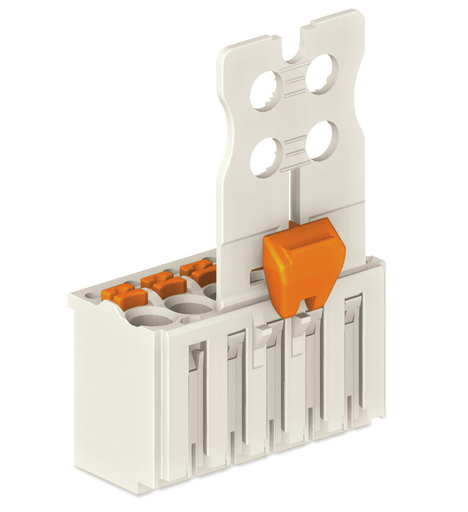

WAGO 20911108002000 8-pole Female Plug Connector
The WAGO 2091-1108/002-000 is an 8-pole female plug connector designed for universal conductor connections. Its push-in CAGE CLAMP® technology simplifies termination, eliminating the need for special tools. The design incorporates integrated locking latches for secure connections and allows for mating or unmated wiring. This connector is ideal for applications requiring reliable and easy-to-use connections in industrial settings.
Authorized Distributors
Source:Master Electronics
Part No:2091-1108/002-000
Stock:2
Inv Date:06-04-2026
Price: Unit price: $11.935
Buy/RFQ:
Source:Onlinecomponents.com
Part No:2091-1108/002-000
Stock:2
Inv Date:06-04-2026
Price: Unit price: $11.935
Buy/RFQ:
Source:Future Electronics Corporate
Part No:2091-1108/002-000
Stock:25
Inv Date:06-04-2026
Price: Unit price: $5.25
Buy/RFQ:
WAGO 20911108002000 8-pole Female Plug Connector Specifications:
- Nominal Voltage (III/3): 160 V
- Rated Surge Voltage (III/3): 2.5 kV
- Nominal Voltage (III/2): 160 V
- Rated Surge Voltage (III/2): 2.5 kV
- Rated Voltage (II/2): 320 V
- Rated Surge Voltage (II/2): 2.5 kV
- Rated Current: 10 A
- Solid Conductor: 0,2 … 1,5 mm² / 24 … 14 AWG
- Fine-Stranded Conductor: 0,2 … 1,5 mm² / 24 … 14 AWG
- Fine-Stranded Conductor with Insulated Ferrule: 0,25 … 0,75 mm²
- Fine-Stranded Conductor with Uninsulated Ferrule: 0,25 … 1,5 mm²
- Strip Length: 8 … 9 mm / 0.31 … 0.35 inch
- Pole No.: 8
- Total Number of Connection Points: 8
- Total Number of Potentials: 8
- Number of Connection Types: 1
- Number of Levels: 1
- Pin Spacing: 3,5 mm / 0.138 inch
- Width: 28 mm / 1.102 inch
- Height: 34 mm / 1.339 inch
- Depth: 12,4 mm / 0.488 inch
- Material Group: I
- Insulation Material: Polyphthalamide (PPA GF)
- Flammability Class per UL94: V0
- Clamping Spring Material: Chrome nickel spring steel (CrNi)
- Contact Material: Electrolytic copper (E Cu)
- Contact Plating: tin-plated
- Fire Load: 0.096 MJ
- Weight: 3.9 g
- Limit Temperature Range: -60 … +100 °C
- Country of Origin: DE
- GTIN: 4050821411673
- Customs Tariff Number: 85366990990
- UL Rated Voltage (Use Group B): 300 V
- UL Rated Current (Use Group B): 10 A
- UL Rated Voltage (Use Group D): 300 V
- UL Rated Current (Use Group D): 10 A
