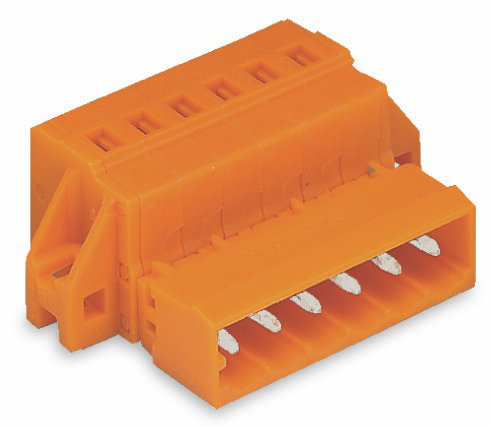

WAGO 231636019000 6-pole Male Connector
The WAGO 231-636/019-000 is a 6-pole male connector designed for robust and reliable connections in various industrial applications. It features fixing flanges for secure mounting and a pin spacing of 5.08mm, making it compatible with a wide range of wiring configurations. The connector supports both solid and stranded conductors, offering versatility in cable management. Its CAGE CLAMP® connection technology ensures easy and secure termination, while coding options provide additional circuit identification and error prevention. This connector is ideal for applications requiring durable and reliable power and signal transmission.
WAGO 231636019000 6-pole Male Connector Specifications:
- No. of Poles: 6
- Total number of connection points: 6
- Total number of potentials: 6
- Color: orange
- Overvoltage category EN: III
- Pollution degree: 2
- Rated voltage EN: 320 V
- Rated surge voltage: 4 kV
- Nominal current: 12 A
- Connection technology: CAGE CLAMP®
- Conductor type (solid): solid
- Cross section from (solid): 0.08 mm²
- Cross section up to (solid): 2.5 mm²
- Conductor type (fine-stranded): fine-stranded
- Cross section from (fine-stranded): 0.08 mm²
- Cross section up to (fine-stranded): 2.5 mm²
- Conductor type (ferrule): fine-stranded (with insulated ferrule)
- Cross section from (ferrule): 0.25 mm²
- Cross section up to (ferrule): 1.5 mm²
- Conductor type (uninsulated ferrule): fine-stranded (with uninsulated ferrule)
- Cross section from (uninsulated ferrule): 0.25 mm²
- Cross section up to (uninsulated ferrule): 2.5 mm²
- Stripped length from: 8 mm
- Stripped length up to: 9 mm
- Material group: I
- Insulating material: Polyamide 6.6 (PA 6.6)
- Flammability rating: V0
- Lower limit temperature: -60 C
- Upper temperature limit: 100 C
- Clamping spring material: Chrome-nickel spring steel (CrNi)
- Contact material: Electrolytic copper (Ecu)
- Contact plating: tin-plated
- Fire load: 0.182 MJ
- Weight: 10.27 g
- Width: 45.28 mm
- Height: 14.3 mm
- Length: 27.5 mm
- Pin spacing from: 5.08 mm
- Pin spacing up to: 5.08 mm
