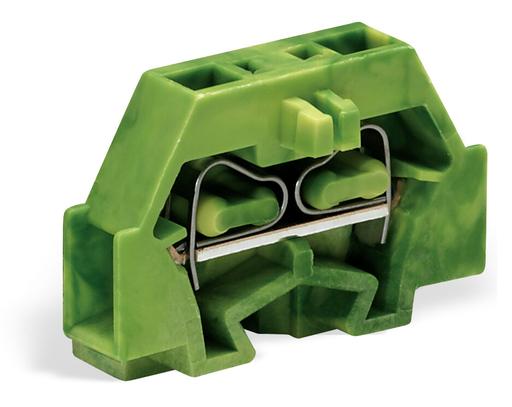

WAGO 260307 2-Conductor Terminal Block
The WAGO 260-307 is a 2-conductor terminal block designed for reliable electrical connections in industrial environments. It incorporates WAGO’s innovative CAGE CLAMP® connection technology, ensuring secure and vibration-resistant connections. The terminal block features a fixing flange for easy mounting and is suitable for screw or similar mounting types. It accommodates a range of conductor sizes, making it versatile for various applications. Its compact design and robust construction make it a dependable choice for control cabinets, machinery, and other industrial equipment. The terminal block is marked on the side for easy identification and organization.
WAGO 260307 2-Conductor Terminal Block Specifications:
- Connection technology: CAGE CLAMP®
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
- Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Side-entry wiring
- Width: 5 mm / 0.197 inch
- Height from the surface: 17 mm / 0.669 inch
- Depth: 25 mm / 0.984 inch
- Design: horizontal
- Mounting type: Mounting flange
- Marking level: Side marking
- Color: green-yellow
- Fire load: 0.031 MJ
- Weight: 1.5 g
- Product Group: 9 (Std. Chassis Mt. Blocks)
- Packaging type: BOX
- Country of origin: CH
- GTIN: 4044918593489
- Customs Tariff No.: 85369010000
- Legend ratings: Overvoltage category III / Pollution degree 3
