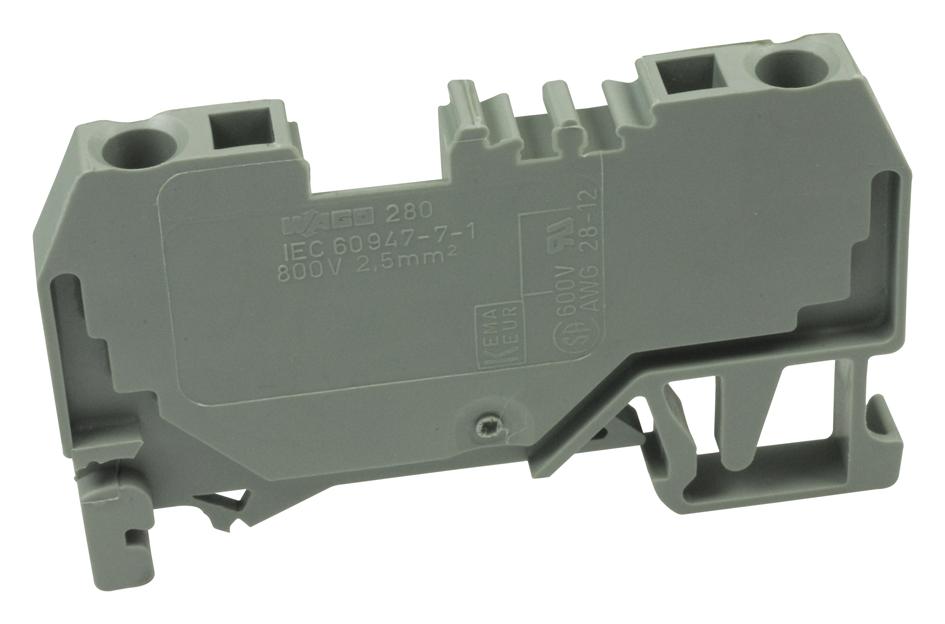

WAGO 280901 2-Conductor Through Terminal Block
The WAGO 280-901 is a versatile 2-conductor through terminal block suitable for a wide range of industrial applications. Designed for DIN 35 rail mounting, it provides a secure and organized connection for electrical circuits. The terminal block supports wire cross-sections ranging from 0.08 to 2.5 mm² (28-12 AWG), ensuring compatibility with various wire gauges. With a rated voltage of 800V and a current intensity of 24A, it's suitable for demanding power distribution needs. Its compact dimensions (28mm height, 5mm width, 53mm depth) make it ideal for space-constrained environments. The center marking simplifies wiring and ensures accurate connections.
WAGO 280901 2-Conductor Through Terminal Block Specifications:
- Cross section1: 0.08 - 2.5 mm²
- Cross section2: 28 - 12 AWG
- Strip length: 8 - 9 mm
- Measured voltage: 800 V
- Measured shock voltage: 8 kV
- Pollution degree: 3
- Current intensity: 24 A
- Height: 28 mm
- Width: 5 mm
- Depth: 53 mm
- No. of connection Points: 2
- No. of potentials: 1
- COLOR: grau
- WEIGHT: 5.428 g
