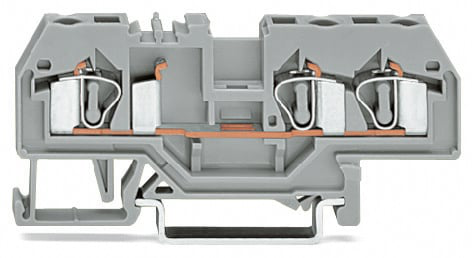

WAGO 281685 3-conductor through terminal block
The WAGO 281-685 3-conductor through terminal block provides a robust and space-saving solution for electrical connections. Utilizing WAGO’s innovative CAGE CLAMP® connection technology, it ensures reliable and vibration-resistant terminations. Suitable for a broad range of applications including industrial control panels, power distribution systems, and machinery, the 281-685 offers a safe and efficient way to manage multiple conductors. It is rated for 800V and 32A, and supports wire gauges from 0.08 to 4 mm² (28-12 AWG). The terminal block is designed for DIN rail mounting and is compatible with various accessories for marking and insulation.
WAGO 281685 3-conductor through terminal block Specifications:
- Total number of connection points: 3
- Total number of potentials: 1
- Color: black
- Pollution degree (1): 3
- Rated voltage EN (1) [V]: 800
- Rated surge voltage (1) [kV]: 8
- Nominal current [A]: 32
- Connection technology (1): CAGE CLAMP®
- Cross section from (1) [mm²]: 0.08
- Cross section up to (1) [mm²]: 4
- Cross section from (1) [AWG]: 28
- Cross section up to (1) [AWG]: 12
- Stripped length from (1) [mm]: 9
- Stripped length up to (1) [mm]: 10
- Stripped length (1) [in]: 0.37
- Type of wiring: Front-entry wiring
- Design: horizontal
- Marking level: Center marking
- Fire load [MJ]: 0.174
- Weight [g]: 10.866
- Width [mm]: 6
- Width [in]: 0.236
- Height [mm]: 29
- Height [in]: 1.142
- Length [mm]: 73.5
- Length [in]: 2.894
- Type of mounting: DIN 35 rail
