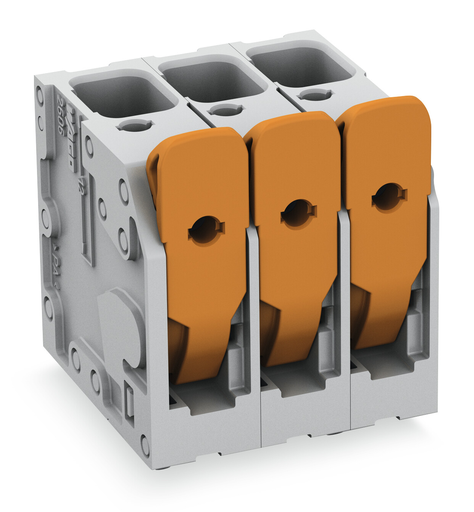

WAGO 26063102020000 2-pole Lever Terminal Block
The WAGO 2606-3102/020-000 is a robust 2-pole PCB terminal block designed for reliable connections in industrial environments. Its lever and Push-in CAGE CLAMP mechanism allows for intuitive and tool-free operation, simplifying the termination process for both solid and stranded conductors. The block supports a wide range of conductor sizes and offers excellent electrical performance with a nominal voltage of 800V and a rated current of 41A. Its compact design and staggered solder pin arrangement facilitate easy integration into PCB layouts.
WAGO 26063102020000 2-pole Lever Terminal Block Specifications:
- Rated Voltage (III/3): 800 V
- Rated Surge Voltage (III/3): 8 kV
- Rated Voltage (III/2): 1000 V
- Rated Surge Voltage (III/2): 8 kV
- Rated Voltage (II/2): 1000 V
- Rated Surge Voltage (II/2): 8 kV
- Rated Current: 41 A
- Solid Conductor Size: 0.2 … 10 mm² / 24 … 8 AWG
- Fine-Stranded Conductor Size: 0.2 … 10 mm² / 24 … 8 AWG
- Insulated Ferrule Size: 0.25 … 6 mm²
- Uninsulated Ferrule Size: 0.25 … 6 mm²
- Twin Ferrule Size: 0.25 … 2.5 mm²
- Strip Length: 11 … 13 mm / 0.43 … 0.51 inch
- Pin Spacing: 7.5 mm / 0.295 inch
- Width: 17.85 mm / 0.703 inch
- Height: 31 mm / 1.22 inch
- Height from Surface: 27 mm / 1.063 inch
- Depth: 24 mm / 0.945 inch
- Solder Pin Length: 4 mm
- Solder Pin Dimensions: 1.5 x 1.2 mm
- Drilled Hole Diameter: 2 (+0.1) mm
- Material Group: I
- Insulation Material: Polyamide (PA66)
- Flammability Class: V0
- Clamping Spring Material: Chrome nickel spring steel (CrNi)
- Contact Material: Electrolytic copper (E Cu)
- Contact Plating: tin-plated
- Color of Actuator: orange
- Weight: 8.9 g
- Limit Temperature Range: -60 … +105 °C
- Packaging Type: BOX
- Country of Origin: DE
- GTIN: 4055143586603
- Customs Tariff Number: 85369010000
