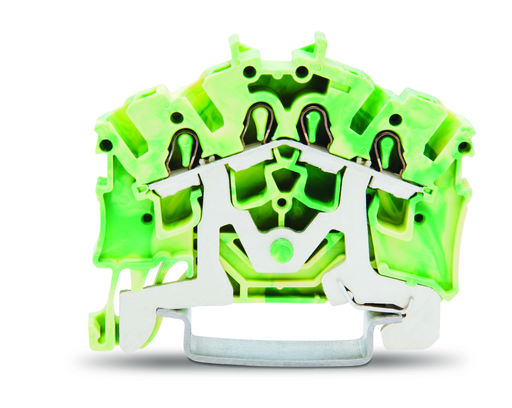

WAGO 20026407 4-conductor Ground Terminal Block
The WAGO 2002-6407 is a robust 4-conductor ground terminal block engineered for reliable connections in demanding industrial environments, particularly those requiring Ex e II safety certifications. Its Push-in CAGE CLAMP® technology simplifies wiring and ensures secure connections. Designed for DIN-rail mounting, this terminal block is ideal for applications requiring organized and space-efficient electrical distribution. The ability to perform side and center marking enhances identification and maintenance processes.
WAGO 20026407 4-conductor Ground Terminal Block Specifications:
- Connection technology: Push-in CAGE CLAMP®
- Actuation type: Push-in
- Connectable conductor materials: Copper
- Nominal cross-section: 2.5 mm²
- Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
- Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
- Fine-stranded conductor; with ferrule; push-in termination: 1 … 2.5 mm² / 18 … 14 AWG
- Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- Strip length: 10 … 12 mm / 0.39 … 0.47 inch
- Total number of connection points: 4
- Total number of potentials: 1
- Number of levels: 1
- Wiring type: Front-entry wiring
- Number of jumper slots: 0
- Width: 5.2 mm / 0.205 inch
- Height: 52.6 mm / 2.071 inch
- Depth from upper edge of DIN-rail: 38.9 mm / 1.531 inch
- Design: Angled
- Color: green-yellow
- Insulation material: Polyamide (PA66)
- Fire load: 0.112 MJ
- Weight: 8.9 g
- Mounting type: DIN-35 rail
- Marking level: Center/side marking
- Product Group: 22 (TOPJOB S)
- Packaging type: BOX
- Country of origin: CN
- GTIN: 4044918964913
- Customs tariff number: 85369010000
