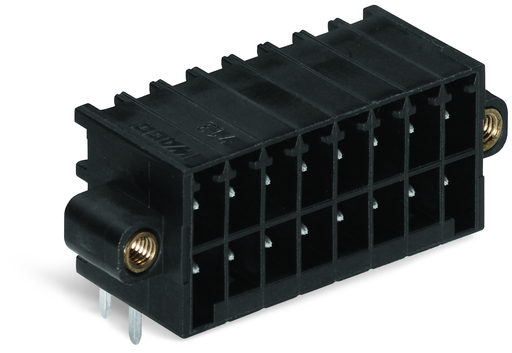

WAGO 7131431107000 2-Row Male Header
The WAGO 713-1431/107-000 is a robust and reliable 2-row male header designed for secure and efficient connections in various industrial applications. Its angled solder pins facilitate easy integration into PCBs, while the threaded flange provides a stable mounting solution. The 100% mismating protection ensures reliable connections and prevents damage. This header is ideal for applications requiring a high-density connection with secure mounting and protection against errors.
WAGO 7131431107000 2-Row Male Header Specifications:
- Rated voltage (III / 3): 80 V
- Rated impulse voltage (III / 3): 2.5 kV
- Rated voltage (III / 2): 160 V
- Rated impulse voltage (III / 2): 2.5 kV
- Rated voltage (II / 2): 250 V
- Rated current: 10 A
- Rated voltage UL (Use Group B): 150 V
- Rated current UL (Use Group B): 10 A
- Rated voltage UL (Use Group C): 50 V
- Rated current UL (Use Group C): 10 A
- Rated voltage CSA (Use Group B): 150 V
- Rated current CSA (Use Group B): 12 A
- No. of poles: 22
- Total number of potentials: 22
- Number of connection types: 1
- Number of levels: 2
- Pin spacing: 3.5 mm
- Width: 48.6 mm
- Height: 17.1 mm
- Height from the surface: 13.3 mm
- Depth: 13.5 mm
- Solder pin length: 3.8 mm
- Solder pin dimensions: 0.8 x 0.8 mm
- Drilled hole diameter (tolerance): 1.2 mm (- … +0.1)
- Contact type (pluggable connector): Male connector/plug
- Connector connection type: for PCBs
- Mismating protection: Yes
- Mating direction to the PCB: 0 °
- Locking of plug-in connection: Threaded flange
- PCB contact: THT
- Solder pin arrangement: over the entire male connector, in line
- Number of solder pins per potential: 1
- Color: black
- Material group: I
- Insulating material: Polyphthalamide (PPA GF)
- Flammability class per UL94: V0
- Contact material: Electrolytic copper (E Cu)
- Contact plating: tin-plated
- Fire load: 0.125 MJ
- Weight: 6.6 g
- Limit temperature range: -60 … +100 °C
- Packaging type: BOX
- Country of origin: PL
- GTIN: 4045454809188
- Customs Tariff No.: 85366990990
