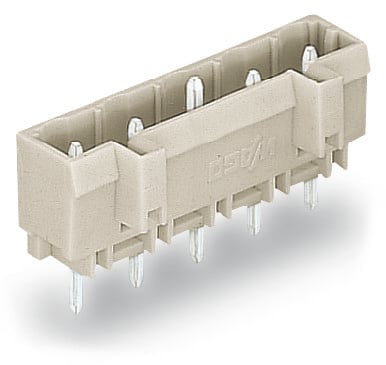

WAGO 721265001000 5-pole THT Header
The WAGO 721-265/001-000 is a robust 5-pole THT male header designed for reliable PCB connections. Its 1.2 x 1.2 mm solder pins allow for a nominal current up to 16 A, enhancing the stability of shorter headers. The header incorporates coding fingers for enhanced security and is protected against mismating. Suitable for a wide range of industrial applications requiring secure and reliable connections, this header is a key component in various electronic assemblies.
WAGO 721265001000 5-pole THT Header Specifications:
- Rated voltage (III / 3): 500 V
- Rated impulse voltage (III / 3): 6 kV
- Rated voltage (III / 2): 630 V
- Rated impulse voltage (III / 2): 6 kV
- Rated voltage (II / 2): 1000 V
- Rated impulse voltage (II / 2): 6 kV
- Rated current: 16 A
- Pin spacing: 7.5 mm
- Number of poles: 5
- Total number of potentials: 5
- Solder pin length: 5 mm
- Solder pin dimensions: 1.2 x 1.2 mm
- Width: 38 mm
- Height: 17 mm
- Height from the surface: 12 mm
- Depth: 11.4 mm
- Drilled hole diameter (tolerance): 1.7 mm (- … +0.1)
- Material group: I
- Insulating material: Polyamide 66 (PA 66)
- Flammability class per UL94: V0
- Contact material: Electrolytic copper (E) Cu
- Contact plating: tin-plated
- Fire load: 0.044 MJ
- Weight: 2.5 g
- Limit temperature range: -60 … +100 °C
- Product Group: 3 (Multi Conn. System)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918932974
- Customs Tariff No.: 85366990990
