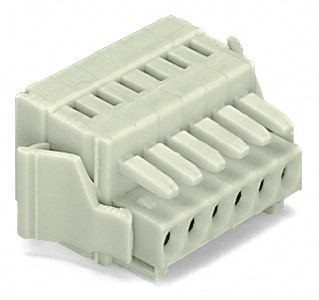

WAGO 734104037000 Female Plug with Locking Lever
The WAGO 734-104/037-000 female plug connector is designed for secure and reliable electrical connections in industrial environments. Featuring a locking lever and 3.5mm pin spacing, this connector ensures a robust connection while preventing mismating with its coding fingers. It is suitable for applications requiring a compact and protected connection, such as automation systems, control panels, and power distribution. The connector's robust design and reliable performance make it an ideal choice for demanding industrial applications.
WAGO 734104037000 Female Plug with Locking Lever Specifications:
- package_size: 50 pieces
- pin_spacing_mm: 3.5 mm
- pin_spacing_in: 0.138 in
- pole_count: 4
- cross_section_mm2_from: 0.08 mm2
- cross_section_mm2_to: 1.5 mm2
- cross_section_awg_from: 28 AWG
- cross_section_awg_to: 14 AWG
- voltage_ul: 250 V
- voltage_csa: 300 V
- current_ul: 10 A
- current_csa: 10 A
- measured_voltage_en: 250 V
- measured_shock_voltage: 2.5 kV
- pollution_degree: 2
- current_intensity_en: 10 A
- weight_g: 3.655g
- color: lightgrey
- no_of_connection_points: 4
- no_of_potentials: 4
- height_mm: 13.4 mm
- height_in: 0.528 in
- width_mm: 25.8 mm
- width_in: 1.016 in
- depth_mm: 18.6 mm
- depth_in: 0.732 in
- striplength_mm_from: 7 mm
- striplength_mm_to: 7 mm
- striplength_in: 0.28 in
- approval_cca_voltage: 250 V
- approval_cca_current: 10 A
- approval_cca_number_1: 123898-02
- approval_cca_number_2: NL5641
- approval_csa_voltage: 300 V
- approval_csa_current: 10 A
- approval_csa_number: 154112-1465035
- approval_kema_voltage: 250 V
- approval_kema_current: 10 A
- approval_kema_number: 2077592.02
- approval_ul_voltage_1: 250 V
- approval_ul_current_1: 10 A
- approval_ul_number_1: E45171
- approval_ul_voltage_2: 300 V
- approval_ul_current_2: 10 A
- approval_ul_number_2: E45172
Buy the 734-104/037-000 WAGO Female Plug with Locking Lever | myMectronic
Purchase the WAGO 734-104/037-000 Female Plug with Locking Lever securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 734104037000?
You can click on the BUY or RFQ button to purchase 734104037000 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 734104037000?
You can download the 734104037000 datasheet or visit the WAGO website for support.
Who is the manufacturer of 734104037000?
WAGO
