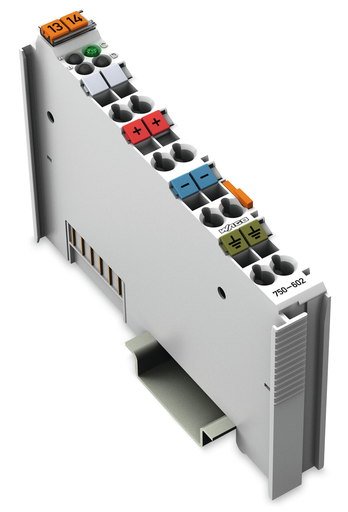

WAGO 750602 Power Supply Module
The WAGO 750-602 is a power supply module designed to provide the necessary power potential to I/O modules within a WAGO system. It operates on a 24VDC supply and has a maximum current capacity of 10A. For applications requiring higher currents, multiple modules can be used in parallel. The module utilizes WAGO’s CAGE CLAMP® connection technology, ensuring reliable and vibration-resistant connections. It is suitable for a variety of industrial automation and control applications where a stable and reliable power supply is essential.
WAGO 750602 Power Supply Module Specifications:
- Type of signal: DC 24 V
- System supply voltage: DC 5 V
- Field supply voltage: DC 24 V
- Outgoing power jumper contacts: 3
- Connection technology field supply: 6 x CAGE CLAMP®
- Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
- Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip length: 8 … 9 mm
- Width: 12 mm
- Height: 69.8 mm
- Height from upper-edge of DIN-35 rail: 62.6 mm
- Depth: 100 mm
- Color: light gray
- Housing material: Polycarbonate, polyamide 6.6
- Fire load: 1.081 MJ
- Weight: 43.3 g
- Conformity marking: CE
- Surrounding air (operating) temperature: 0 … 55 °C
- Surrounding air (storage) temperature: –40 … 85 °C
- Protection class: IP20
- Degree of pollution: 2
- Operating altitude: 0 … 2000 m
- Mounting position: horizontal or vertical
- Relative air humidity: 95 %
- Vibration resistance: 4g
- Shock resistance: 15g
- EMC immunity to interference: acc. to EN 61000-6-2
- EMC emission of interference: acc. to EN 61000-6-4
- Permissible H S contaminant concentration: 10 ppm
- Permissible SO contaminant concentration: 25 ppm
- Product Group: 15 (Remote I/O)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454393731
- Customs Tariff No.: 85389091890
