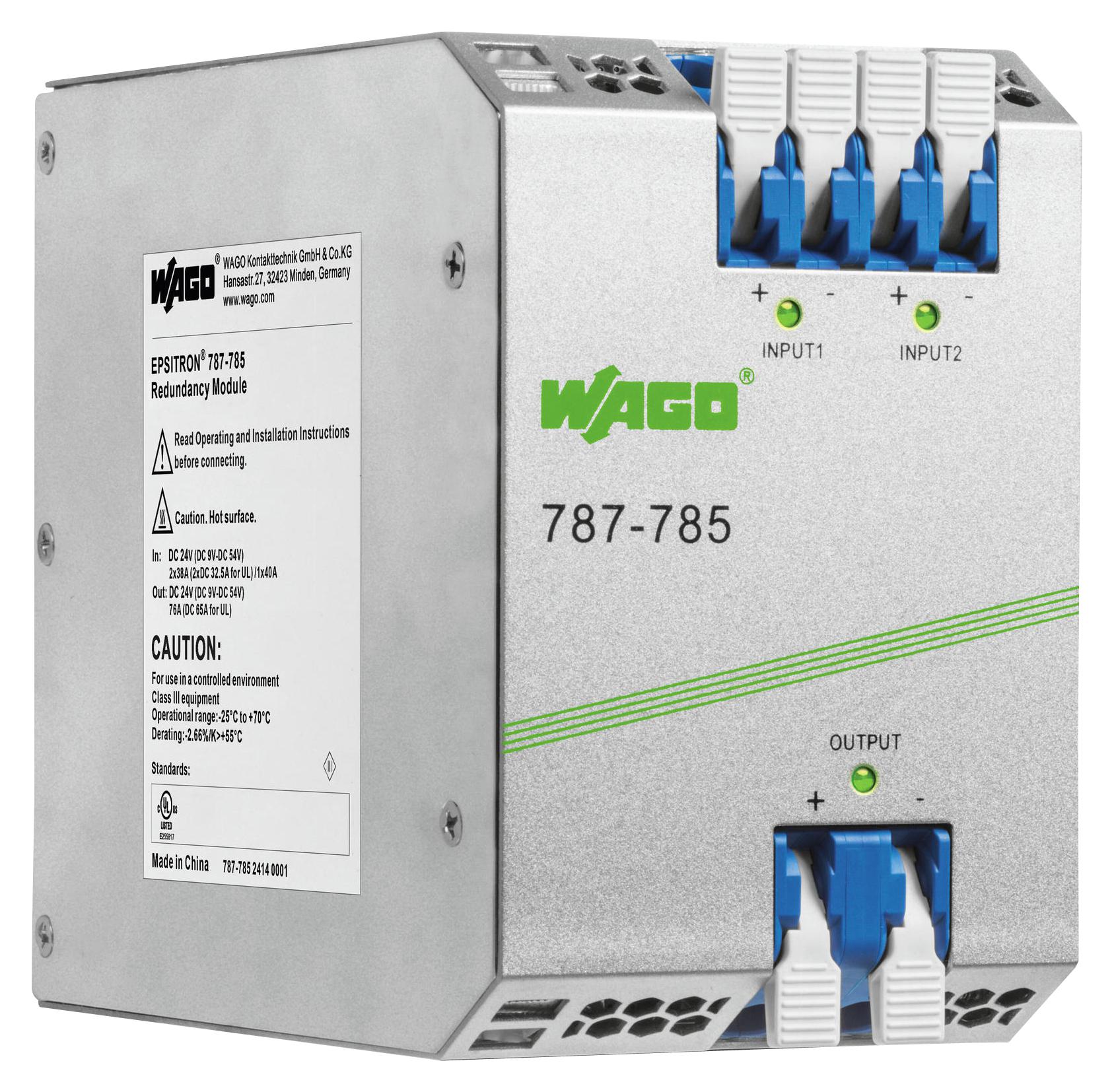

WAGO 787785000040 Redundancy Module
The WAGO Redundancy Module is designed for reliable power supply management in industrial systems. Equipped with two inputs for decoupling power supplies, it ensures fail-safe operation with LED indicators for voltage monitoring. It supports dual input voltage ranges from 9 to 54 VDC, delivering up to 40 A per path and an output power of 1824W. The module features robust protection against overvoltage, reverse feed, short circuits, and is certified for safety standards like UL, CE, and ATEX. Its compact DIN-35 rail mounting makes it suitable for rugged industrial environments and communication interfaces ensure smooth integration.
WAGO 787785000040 Redundancy Module Specifications:
- Input Voltage Range: 2xDC 9...54V
- Input Current: 40 A per path, < 76 A total
- Output Voltage: DC 24V (nominal), range DC 9...54V
- Output Power: 1824W (max. 4104W)
- Voltage Drop: <= 500 mV
- Protection Class: IP20
- Connectors: WAGO 2716 Series, push-in cage clamp for 16 AWG
- Dimensions: Width 83 mm, Height 130 mm, Depth 153 mm
- Weight: 960 g
- Operating Temperature: -25°C to +70°C, Storage: -40°C to +85°C
- Certifications: CE, UL 508, ATEX, IECEx
- Shock & Vibration Resistance: 15g shock, 2.66 %IK
- MTBF: > 10 million hours
- Environmental: Pollution Degree 2, Climatic Category 3K3
Buy the WAGO 787-785/000-040 – Reliable Redundancy Module for Industrial Applications
Purchase the WAGO Redundancy Module online today to ensure continuous and fail-safe power supply in your industrial systems. Featuring dual inputs, LED voltage monitoring, and high current capacity, this module guarantees reliable operation in rugged environments. Its certified safety standards, IP20 protection, and compact DIN-35 rail design make it ideal for automation and control applications. Fast ordering, secure checkout, and expert support ensure you get the highest quality power management solution for your industrial needs, minimizing downtime and enhancing system reliability.
Get WAGO 787-785/000-040 today—built for robust industrial power management and fail-safe operation.
