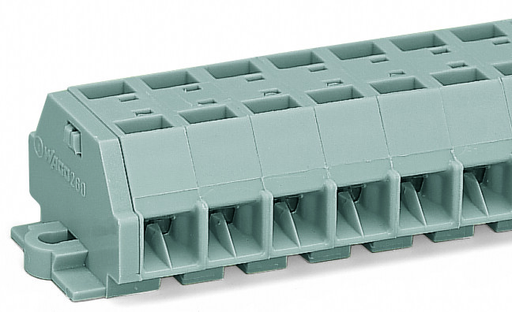

WAGO 260212 12-pole Terminal Strip
The WAGO 260-212 terminal strip offers a robust and space-saving solution for electrical connections in industrial environments. Featuring 12 poles and a gray finish, this terminal strip is designed for horizontal mounting and utilizes the innovative CAGE CLAMP® connection technology, ensuring secure and reliable connections. It supports a wide range of conductor materials and sizes, making it versatile for various applications. The terminal strip is suitable for applications requiring overvoltage category III and pollution degree 3 ratings, ensuring safety and longevity.
WAGO 260212 12-pole Terminal Strip Specifications:
- Rated voltage (III / 3): 400 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 18 A
- Connection technology: CAGE CLAMP®
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
- Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- No. of poles: 12
- Total number of connection points: 48
- Total number of potentials: 12
- Number of levels: 1
- Type of wiring: Side-entry wiring
- Width: 110.5 mm / 4.35 inch
- Height from the surface: 17 mm / 0.669 inch
- Depth: 25 mm / 0.984 inch
- Module width: 8 mm / 0.315 inch
- Design: horizontal
- Mounting type: Mounting flange
- Marking level: Side marking
- Color: gray
- Fire load: 0.531 MJ
- Weight: 31.5 g
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918594257
- Customs Tariff No.: 85369010000
Buy the 260-212 WAGO 12-pole Terminal Strip | myMectronic
Purchase the WAGO 260-212 terminal strip securely online for reliable electrical connections.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 260212?
You can click on the BUY or RFQ button to purchase 260212 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 260212?
You can download the 260212 datasheet or visit the WAGO website for support.
Who is the manufacturer of 260212?
WAGO
