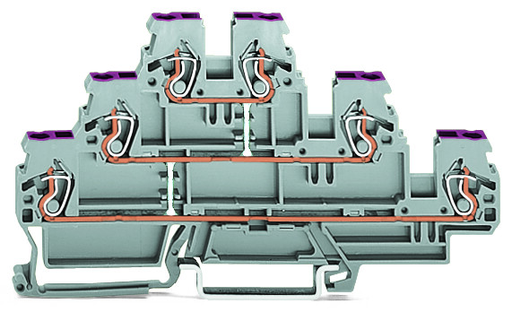

WAGO 870556 6-conductor Terminal Block
The WAGO 870-556 is a versatile triple-deck terminal block designed for efficient and reliable power distribution in industrial environments. Featuring WAGO’s innovative CAGE CLAMP® connection technology, this terminal block ensures secure and vibration-resistant connections for solid and stranded conductors. It is suitable for use on DIN-rails 35 x 15 and 35 x 7.5 and is rated for a nominal voltage of 500V and a rated current of 24A. The block’s horizontal design and side marking capability simplify installation and maintenance, making it an ideal choice for a wide range of applications including automation, control panels, and power distribution systems.
WAGO 870556 6-conductor Terminal Block Specifications:
- Nominal Voltage (III/3): 500 V
- Rated Surge Voltage (III/3): 6 kV
- Rated Current: 24 A
- Connection Technology: CAGE CLAMP®
- Solid Conductor Size: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-Stranded Conductor Size: 0.08 … 4 mm² / 28 … 12 AWG
- Fine-Stranded Conductor with Ferrule Size: 0.08 … 1.5 mm² / 28 … 14 AWG
- Strip Length: 6 … 7 mm / 0.24 … 0.28 inch
- Number of Connection Points: 6
- Number of Potentials: 1
- Number of Levels: 3
- Width: 5 mm / 0.197 inch
- Height: 106 mm / 4.173 inch
- Depth from Upper Edge of DIN-rail: 52.5 mm / 2.067 inch
- Potential Marking: L
- Design: horizontal type
- Mounting Type: DIN-35 rail
- Fire Load: 0.28 MJ
- Weight: 17.8 g
- Packaging Type: BOX
- Country of Origin: DE
- GTIN: 4045454129705
- Customs Tariff Number: 85369010000
Buy the 870-556 WAGO 6-conductor Terminal Block | myMectronic
Purchase the WAGO 870-556 terminal block securely and reliably online for your industrial automation needs.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 870556?
You can click on the BUY or RFQ button to purchase 870556 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 870556?
You can download the 870556 datasheet or visit the WAGO website for support.
Who is the manufacturer of 870556?
WAGO
