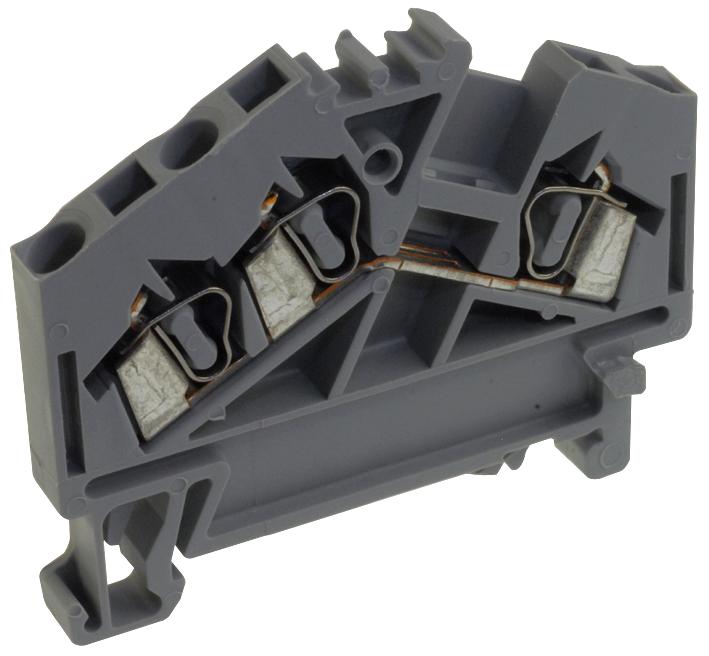

WAGO 280641 3-conductor Terminal Block
The WAGO 280-641 is a versatile 3-conductor through terminal block ideal for use in industrial control panels and electrical distribution systems. Designed for DIN-rail 35 x 15 and 35 x 7.5 mounting, this terminal block offers a compact and space-saving solution. The CAGE CLAMP® spring pressure connection technology ensures reliable termination of conductors, while the center marking simplifies identification and wiring. Compatible with both copper and aluminum conductors (with appropriate preparation), this terminal block provides flexibility for diverse applications. It is RoHS compliant and features a robust polyamide 66 (PA 66) insulating material.
WAGO 280641 3-conductor Terminal Block Specifications:
- Number of Conductors: 3
- Conductor Size: 0.08 … 2.5 mm² / 28 … 12 AWG
- Connection Technology: CAGE CLAMP®
- Mounting Type: DIN-35 rail
- Rated Voltage: 800 V
- Rated Impulse Voltage: 8 kV
- Rated Current: 24 A
- Material: Polyamide 66 (PA 66)
- Color: gray
- Width: 5 mm
- Height: 36.5 mm
- Depth: 50.5 mm
- Weight: 6.7 g
- Aluminum Conductor Compatibility: Yes (with Alu-Plus Contact Paste)
- Aluminum Conductor Current Derating: 2.5 mm² (14 A), 4 mm² (22 A)
