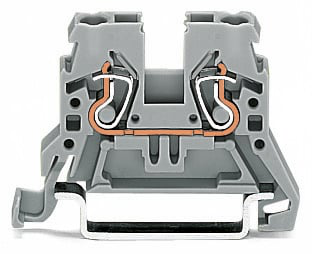

WAGO 870905 2-conductor Terminal Block
The WAGO 870-905 is a robust and reliable 2-conductor through terminal block designed for use in industrial control and power distribution systems. It is mounted on DIN rails (35 x 15 and 35 x 7.5) and utilizes WAGO’s innovative CAGE CLAMP® connection technology for secure and easy termination of conductors. The terminal block is suitable for applications requiring a rated voltage of 500V and a current of 24A. Its compact design and side marking capability make it ideal for space-constrained environments and organized panel layouts. The polyamide 66 (PA 66) insulating material ensures durability and electrical insulation, while the horizontal design and front-entry wiring simplify installation and maintenance.
WAGO 870905 2-conductor Terminal Block Specifications:
- Color: black
- Rated voltage (III / 3): 500 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 24 A
- Connection technology: CAGE CLAMP®
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Strip length: 6 … 7 mm / 0.24 … 0.28 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Width: 5 mm / 0.197 inch
- Height from upper-edge of DIN-35 rail: 27.5 mm / 1.083 inch
- Depth: 44.5 mm / 1.752 inch
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Side marking
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.08 MJ
- Weight: 4.3 g
- Product Group: 16 (Rail Mounted Terminal Block with CCC)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918478427
- Customs Tariff No.: 85369010000
- Max insulation diameter: 4.4mm
