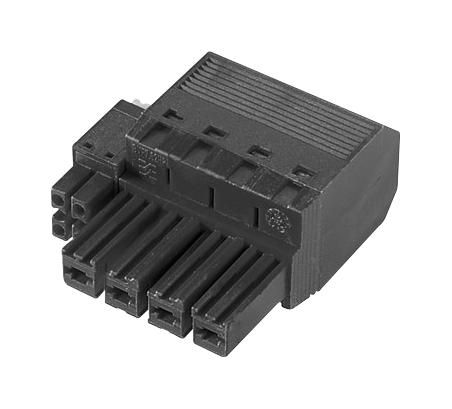

WEIDMULLER 1080570000 Power Signal Connector
This power and signal connector combines a 180° female plug with push-in technology, enabling simultaneous connection of power, signals, and optional shielding. Ideal for servo and asynchronous drives, it features self-locking middle flange, IEC and UL compliance, and a pluggable shield connection on a compact 7.62 mm pitch. Constructed from durable materials with tin-plated copper contacts, it provides a reliable, space-saving solution designed for industrial automation, with high current capacity and robust environmental resistance for demanding applications.
WEIDMULLER 1080570000 Power Signal Connector Specifications:
- Pitch: 7.62 mm (0.3 inch)
- Number of poles: 3
- Rated voltage: IEC 1000 V, UL 600 V
- Rated current: IEC 38 A, UL 35 A
- Max. clamping range: 10 mm
- Wire cross-section: 0.5 mm² to 10 mm²
- Insulating material: PA GF, Black, RAL 9011
- Contact material: Copper alloy, tinned
- Contact surface: 6-8 um Sn
- Touch-safe protection: IP20
- Operating temperature: -60°C to 125°C
- Flammability: UL V0
- Creepage & clearance: 12.7 mm & 10.4 mm
- Stripping length: 8-12 mm
- Number of rows: 1
- Screwdriver slot: 0.6 x 3.5 mm
- Plugging cycles: 25
- Materials: PA GF insulation, copper contacts
- Approvals: IEC, UL, CSA
- Additional features: Self-locking flange, pluggable shield, space-saving design
Buy the Weidmueller 1080570000 – Reliable Power and Signal Connector for Industrial Applications
Enhance your industrial automation setup with this high-quality power and signal connector, featuring push-in technology and optional shield connection. Designed for robust performance, it supports high current ratings up to 38 A, meets IEC and UL standards, and offers simplified assembly with a compact 7.62 mm pitch. Suitable for connecting servo drives and asynchronous motors, its durable construction ensures long-term reliability. Order online today to streamline your wiring and ensure reliable operation in demanding industrial environments.
Buy Weidmueller 1080570000 now and experience unmatched reliability and performance in industrial drive connections.
